AL Series Precision Helical Planetary Gearbox

A blue and silver helical gear reducer is shown at an angle on a white background. The front features a silver shaft with a hexagonal opening.

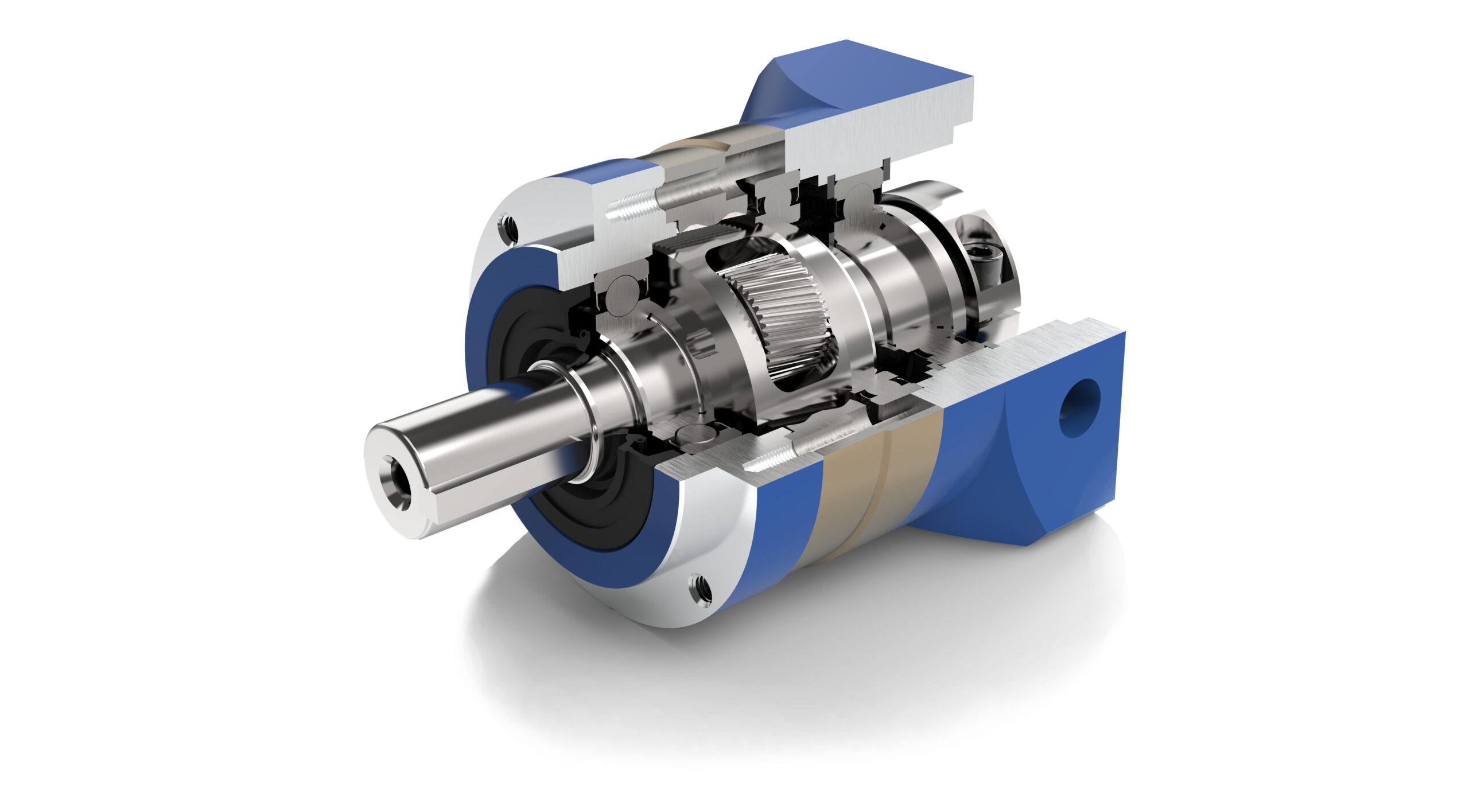

A blue and silver helical gear reducer is cut in half to reveal its internal components, including gears, bearings, and a shaft.

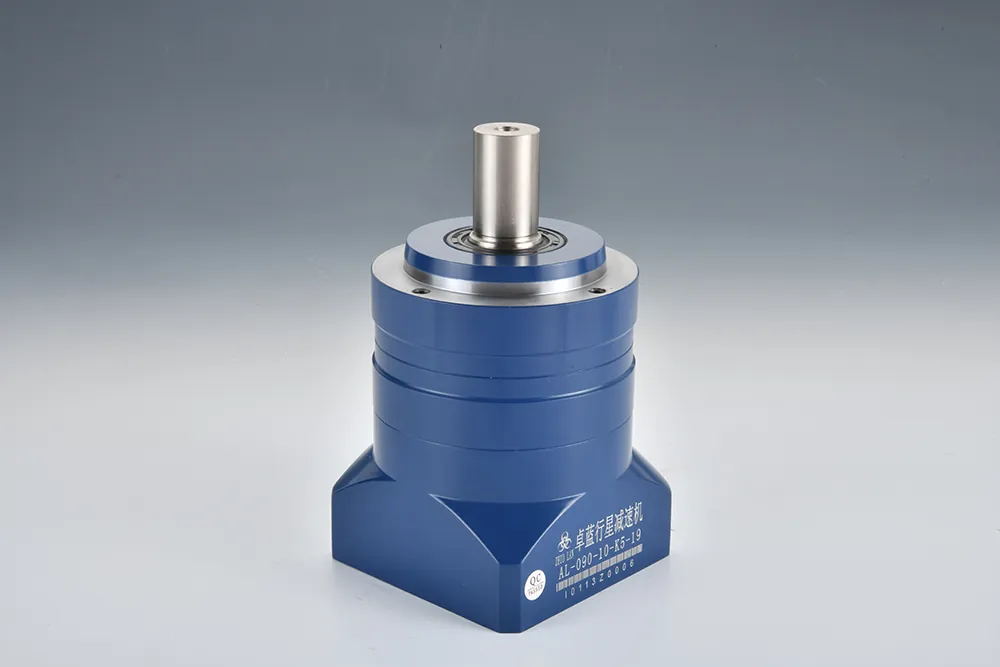

A blue planetary gear reducer with a silver output shaft stands upright against a gray background. The label reads and "AL-090-10-K5-19".

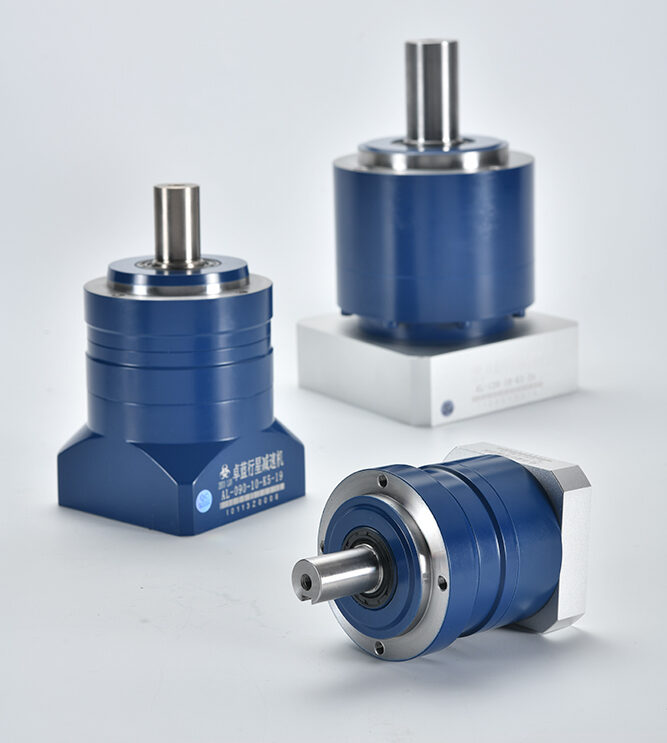

Three blue planetary gear reducers with silver output shafts are displayed on a white surface. One stands upright, while two lie horizontally. The label "卓蓝行星减速机 AL-090-10-K5-19" is visible on one.
AL Series Precision Helical Planetary Gearbox

Additional information

Model

AL070, AL090, AL120, AL155, AL205
  • One-piece planet carrier/output shaft, high torsional rigidity and loading capacity
  • One-piece compact ring gear design, high precision and output torque
  • Alloy steel precision gears, low backlash, low noise, high wear resistance
  • Lubricated for life and IP65 sealing, maintenance free
  • Adapters for all servo motors
Get A Quote
Download Manual

Flexible Partnership Options: We welcome OEM/ODM projects, bulk orders, and distribution inquiries. Our dedicated team is ready to assist you with tailored solutions and responsive support. Free samples are available upon request to ensure your complete satisfaction.

Product Description

The AL series of output shaft inline helical gearboxes offer a wide range of performance options for applications requiring high positioning accuracy and precise motion control, especially where high radial loads are necessary. With the HouZai AL Series planetary gearboxes, you get the ideal solution, combining exceptional output torque and superior overhung load capacity, all within a single gearbox.

The AL inline planetary gearheads provide integration between superior operating performance and cost effectiveness. One-piece planet carrier/output shaft and newly designed gear profile benefit higher output torque, precision, loading capacity and lower noise level. High quality gears and components are utilized to create compact and rigid unit with low backlash and maintenance-free operation. 2 levels of precision are available with max frame size 205 mm. Adapters for all servo motors.

Product Parameters

Frame size (mm) 70,90,120,155,205
Ratio 3-100:1
Nominal input speed (rpm) 1500-3000
Max. input speed (rpm) 3000-6000
Backlash (arcmin) 3 single stage, 5 two stages,
Noise level (dBA/1m) 55-70
Enclosure IP54 (output shaft IP65)
Lubricant service life synthetic lubricant
Max. radial load (N) 1200-15000
Service life (hrs) 20000

Key Features

  • Precision helical hardened and ground gearing.
  • Levels of backlash for demanding applications.
  • Design configurations, 5 frame sizes 70-205 mm.
  • Round mounting, ratio from 3 – 100:1
  • Adapters for all servo motors.
  • The backhaul clearance is small, and the precision single stage can achieve less than 3 arcmin.
