Backpack AGV

Unidirectional AGV (TL-BF-360DX-001) with a yellow body, black base, and a small screen on the side.
Bidirectional AGV (TL-BF-360SX-002) with a yellow body, black base, and a tall blue screen.
QR Code Navigation Bidirectional AGV (TL-BF-350EW-001) with a yellow body, black base, and a small blue screen on the front.
Bidirectional AGV (TL-BF-850SX-001) with a yellow body, black base, and multiple compartments on top.
Backpack AGV

Additional information

AGV stands for Automated Guided Vehicle, which means “automated guided transport vehicle.” An AGV is equipped with automatic guidance devices such as electromagnetic or optical systems, enabling it to A transport vehicle that travels along a prescribed guide path, equipped with safety protection and various transfer functions, is also known as an automated guided vehicle (AGV), automated guided cart, or mobile robot.

The application of AGV carts has replaced traditional manual handling methods, significantly improving labor productivity and the automation level of logistics systems, thereby enhancing various aspects of the production process. The accuracy of the process reduces production costs and better adapts to modern management methods.

Currently, AGV mobile robot products have begun to be gradually used in conjunction with automated equipment such as sorting, handling, and palletizing.

Get A Quote
Download Manual

Flexible Partnership Options: We welcome OEM/ODM projects, bulk orders, and distribution inquiries. Our dedicated team is ready to assist you with tailored solutions and responsive support. Free samples are available upon request to ensure your complete satisfaction.

Product Description

Product Model Specifications

No. Product Models Images Features
1 Unidirectional Backpack AGV
(TL-BF-360DX-001)		 Unidirectional AGV (TL-BF-360DX-001) with a yellow body, black base, and a small screen on the side. Load Type: Backpack
Max Load: 100Kg
Dimensions (L*W*H): 680*450*360mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/22Ah Lead-acid
Charging: Offline (Auto optional)
2 Bidirectional Backpack AGV

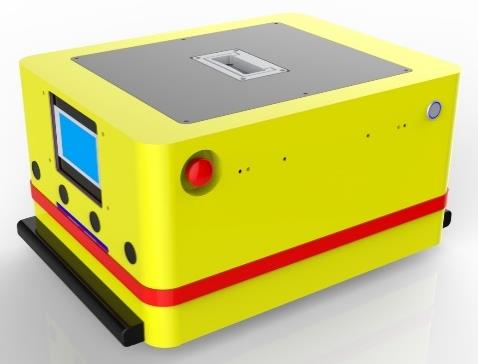

(TL-BF-260SX-001)		 Bidirectional AGV (TL-BF-260SX-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 50Kg
Dimensions (L*W*H): 500*350*260mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/15Ah Lithium
Charging: Offline (Auto optional)
3 Bidirectional Backpack AGV
(TL-BF-300GSX-001)		 Bidirectional AGV (TL-BF-300GSX-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 50Kg
Dimensions (L*W*H): 660*400*300mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/16Ah LFP
Charging: Offline (Auto optional)

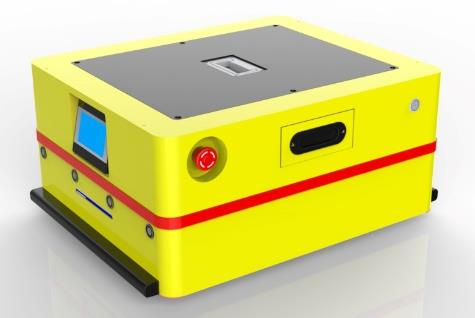

4 Bidirectional Backpack AGV
(TL-BF-300GSX-002)		 Bidirectional AGV (TL-BF-300GSX-002) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 50Kg
Dimensions (L*W*H): 655*500*300mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/15Ah Lithium
Charging: Offline (Auto optional)
5 Bidirectional Backpack AGV

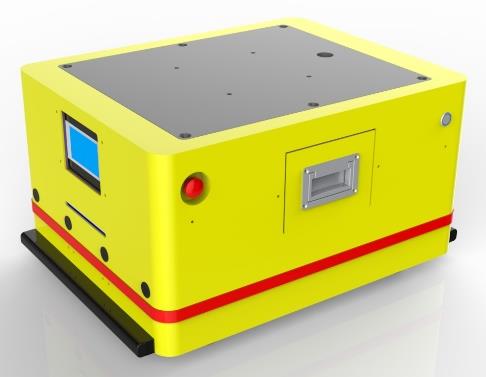

(TL-BF-360ML-001)		 Bidirectional AGV (TL-BF-360ML-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 50Kg
Dimensions (L*W*H): 670*480*360mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Mecanum Wheel
Movement: Forward, Backward, 90-360° Rotation, Arc Turning, Lateral
Speed: ≤40m/min
Battery: DC24V/36Ah LFP
Charging: Offline (Auto optional)

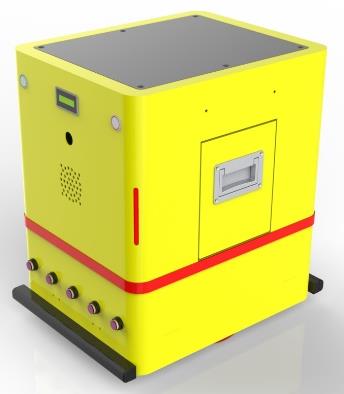

6 Bidirectional Backpack AGV
(TL-BF-520SX-001)		 Bidirectional AGV (TL-BF-520SX-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 50Kg
Dimensions (L*W*H): 490*350*520mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/22Ah Lead-acid
Charging: Offline (Auto optional)
7 Bidirectional Backpack AGV

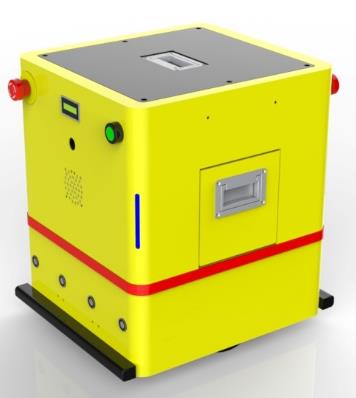

(TL-BF-520GSX-001)		 Bidirectional AGV (TL-BF-520GSX-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 50Kg
Dimensions (L*W*H): 495*400*520mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/24Ah Lead-acid
Charging: Offline (Auto optional)
8 Bidirectional Backpack AGV

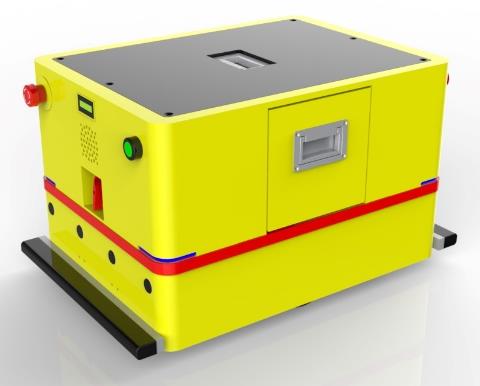

(TL-BF-360SX-001)		 Bidirectional AGV (TL-BF-360SX-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 150Kg
Dimensions (L*W*H): 710*450*360mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/40Ah Lead-acid
Charging: Offline (Auto optional)

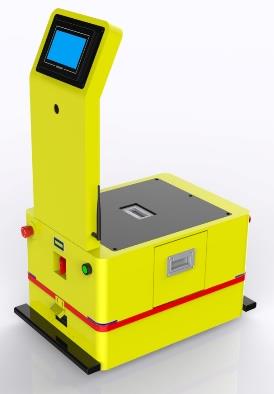

9 Bidirectional Backpack AGV
(TL-BF-360SX-002)		 Bidirectional AGV (TL-BF-360SX-002) with a yellow body, black base, and a tall blue screen. Load Type: Backpack
Max Load: 150Kg
Dimensions (L*W*H): 710*450*360/1075mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/40Ah Lead-acid
Charging: Offline (Auto optional)
10 Bidirectional Backpack AGV

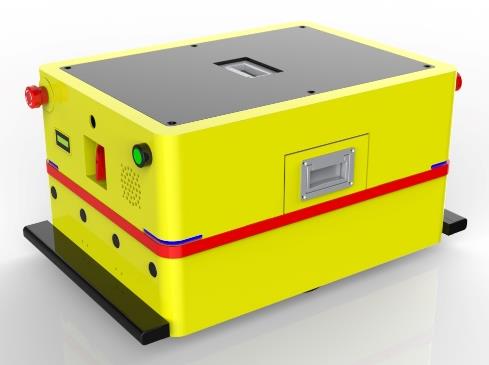

(TL-BF-360SX-003)		 Bidirectional AGV (TL-BF-360SX-003) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 150Kg
Dimensions (L*W*H): 710*450*360mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/30Ah LFP
Charging: Offline (Auto optional)

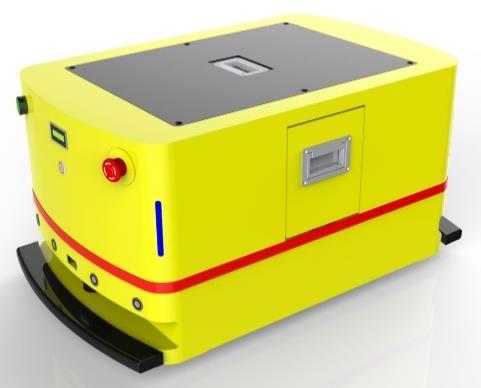

11 Bidirectional Backpack AGV
(TL-BF-430SX-001)		 Bidirectional AGV (TL-BF-430SX-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 150Kg
Dimensions (L*W*H): 865*500*430mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/22Ah Lead-acid or 30Ah LFP
Charging: Offline (Auto optional)
12 Bidirectional Backpack AGV

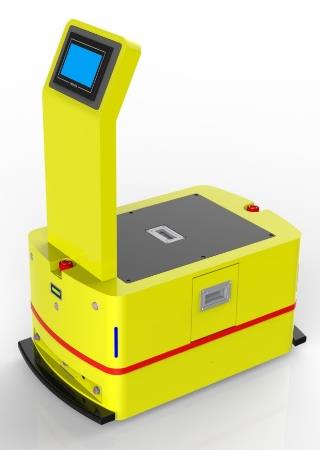

(TL-BF-430SX-002)		 Bidirectional AGV (TL-BF-430SX-002) with a yellow body, black base, and a tall blue screen. Load Type: Backpack
Max Load: 150Kg
Dimensions (L*W*H): 865*500*430mm (Total H: 1095mm)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/22Ah Lead-acid
Charging: Offline (Auto optional)

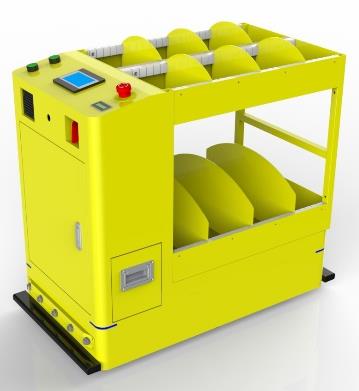

13 Bidirectional Backpack AGV
(TL-BF-850SX-001)		 Bidirectional AGV (TL-BF-850SX-001) with a yellow body, black base, and multiple compartments on top. Load Type: Backpack
Max Load: 100Kg
Dimensions (L*W*H): 1000*500*850mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/22Ah Lead-acid
Charging: Offline (Auto optional)

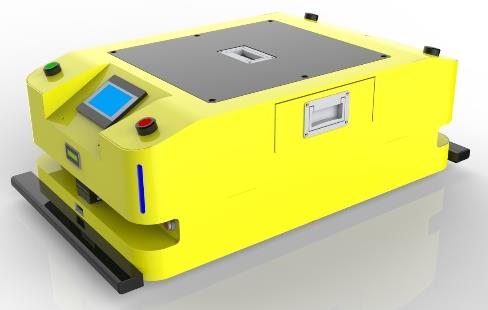

14 Bidirectional Backpack AGV
(TL-BF-300SX-001)		 Bidirectional AGV (TL-BF-300SX-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 150Kg
Dimensions (L*W*H): 900*500*300mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/40Ah Lithium
Charging: Offline (Auto optional)
15 Bidirectional Backpack AGV

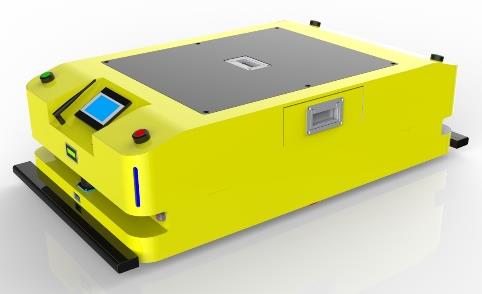

(TL-BF-300SX-002)		 Bidirectional AGV (TL-BF-300SX-002) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 150Kg
Dimensions (L*W*H): 1100*600*300mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/40Ah Lithium
Charging: Offline (Auto optional)

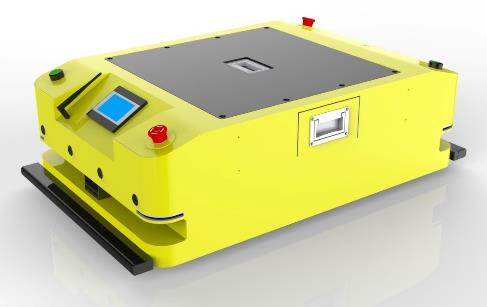

16 Bidirectional Backpack AGV
(TL-BF-300SX-003)		 Bidirectional AGV (TL-BF-300SX-003) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 150Kg
Dimensions (L*W*H): 990*600*300mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/30Ah LFP
Charging: Offline (Auto optional)

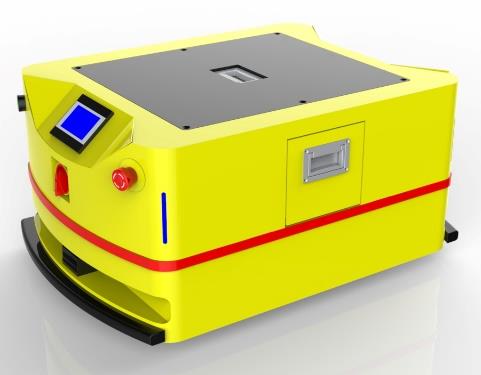

17 Bidirectional Backpack AGV
(TL-BF-410SX-001)		 Bidirectional AGV (TL-BF-410SX-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 800Kg
Dimensions (L*W*H): 890*600*410mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC48V/50Ah LFP
Charging: Offline (Auto optional)
18 Bidirectional Backpack AGV

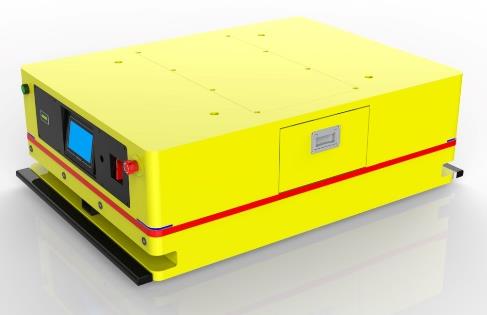

(TL-BF-420SX-001)		 Bidirectional AGV (TL-BF-420SX-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 300Kg
Dimensions (L*W*H): 1300*900*420mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/65Ah Lead-acid
Charging: Offline (Auto optional)

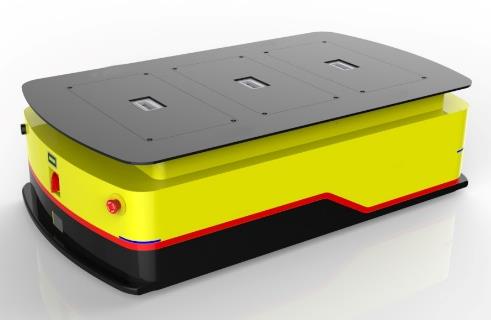

19 Bidirectional Backpack AGV
(TL-BF-410SX-002)		 Bidirectional AGV (TL-BF-410SX-002) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 300Kg
Dimensions (L*W*H): 1460*800*410mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC48V/60Ah LFP
Charging: Offline (Auto optional)
20 Bidirectional Backpack AGV

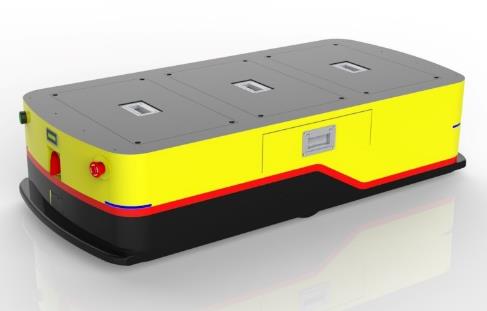

(TL-BF-300SX-004)		 Bidirectional AGV (TL-BF-300SX-004) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 200Kg
Dimensions (L*W*H): 1293*600*300mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation, Arc Turning
Speed: ≤40m/min
Battery: DC24V/60Ah LFP
Charging: Offline (Auto optional)
21 Dual-Steering Wheel Backpack AGV

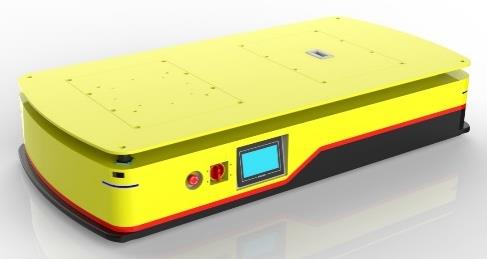

(TL-BF-350DL-001)		 Dual-wheel Bidirectional AGV (TL-BF-350DL-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 500Kg
Dimensions (L*W*H): 1850*900*350mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Dual-Steering Wheel
Movement: Forward, Backward, 90-360° Rotation, Arc Turning, Lateral
Speed: ≤40m/min
Battery: DC48V/60Ah LFP
Charging: Offline (Auto optional)

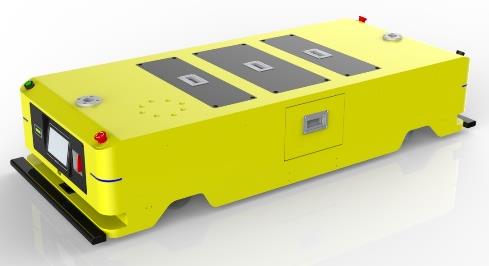

22 Dual-Steering Wheel Backpack AGV
(TL-BF-350DL-002)		 Dual-wheel Bidirectional AGV (TL-BF-350DL-002) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 500Kg
Dimensions (L*W*H): 1750*700*350mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Dual-Steering Wheel
Movement: Forward, Backward, 90-360° Rotation, Arc Turning, Lateral
Speed: ≤40m/min
Battery: DC48V/60Ah LFP
Charging: Offline (Auto optional)
23 Dual-Steering Wheel Backpack AGV

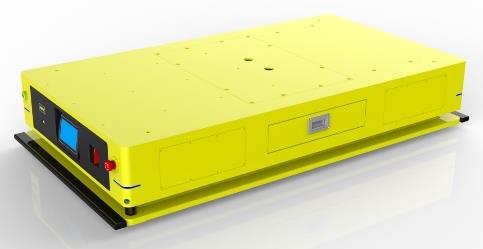

(TL-BF-350DL-003)		 Dual-wheel Bidirectional AGV (TL-BF-350DL-003) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 3000Kg
Dimensions (L*W*H): 1900*1000*350mm (Customizable)
Navigation: Magnetic Stripe
Drive Method: Dual-Steering Wheel
Movement: Forward, Backward, 90-360° Rotation, Arc Turning, Lateral
Speed: ≤40m/min
Battery: DC24V/100Ah LFP
Charging: Offline (Auto optional)

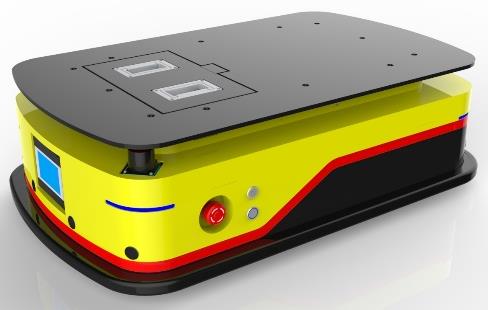

24 QR Code Navigation Backpack AGV
(TL-BF-285EW-001)		 QR Code Navigation Bidirectional AGV (TL-BF-285EW-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 300Kg
Dimensions (L*W*H): 960*550*285mm (Customizable)
Navigation: QR Code
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation
Speed: ≤1.2m/s
Battery: DC48V/35Ah Lead-acid
Charging: Offline (Auto optional)
25 QR Code Navigation Backpack AGV

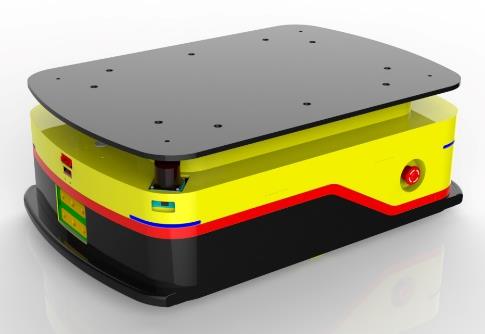

(TL-BF-300EW-001)		 QR Code Navigation Bidirectional AGV (TL-BF-300EW-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 300Kg
Dimensions (L*W*H): 855*550*300mm (Customizable)
Navigation: QR Code
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation
Speed: ≤1.2m/s
Battery: DC48V/30Ah LFP
Charging: Offline (Auto optional)

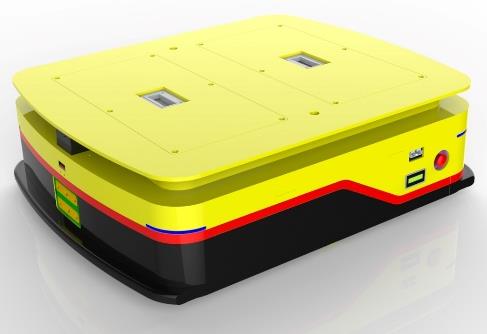

26 QR Code Navigation Backpack AGV
(TL-BF-285EW-002)		 QR Code Navigation Bidirectional AGV (TL-BF-285EW-002) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 300Kg
Dimensions (L*W*H): 955*750*285mm (Customizable)
Navigation: QR Code
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation
Speed: ≤1.2m/s
Battery: DC48V/40Ah LFP
Charging: Offline (Auto optional)

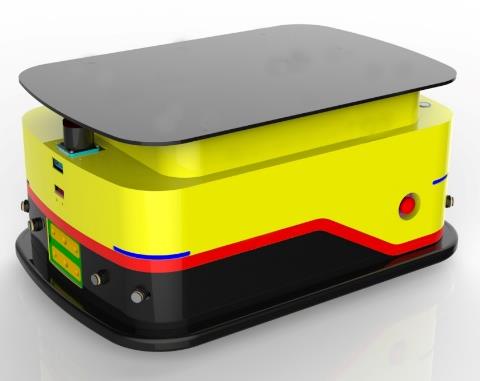

27 QR Code Navigation Backpack AGV
(TL-BF-350EW-001)		 QR Code Navigation Bidirectional AGV (TL-BF-350EW-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 300Kg
Dimensions (L*W*H): 720*450*350mm (Customizable)
Navigation: QR Code
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation
Speed: ≤1.2m/s
Battery: DC48V/30Ah LFP
Charging: Offline (Auto optional)

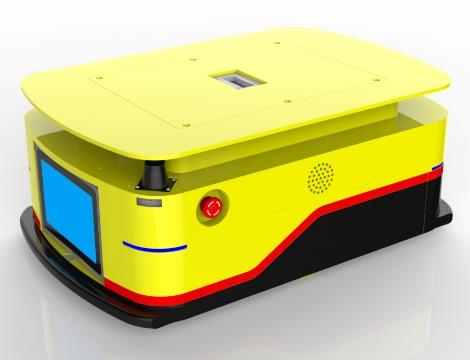

28 Laser SLAM Navigation Backpack AGV

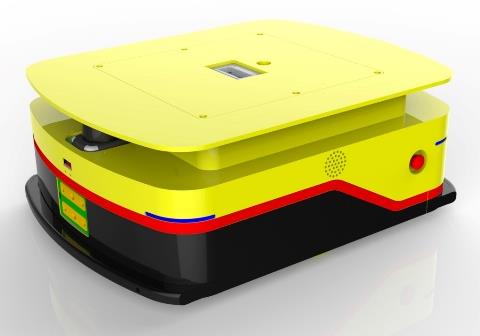

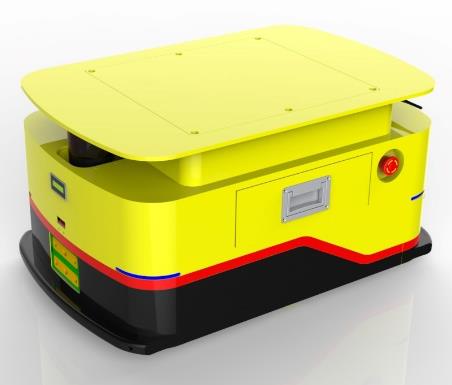

(TL-BF-350SL-001)		 Laser SLAM Navigation Bidirectional AGV (TL-BF-350SL-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 300Kg
Dimensions (L*W*H): 875*550*350mm (Customizable)
Navigation: Laser SLAM
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation
Speed: ≤1.2m/s
Battery: DC48V/30Ah LFP
Charging: Offline (Auto optional)
29 Laser SLAM Navigation Backpack AGV

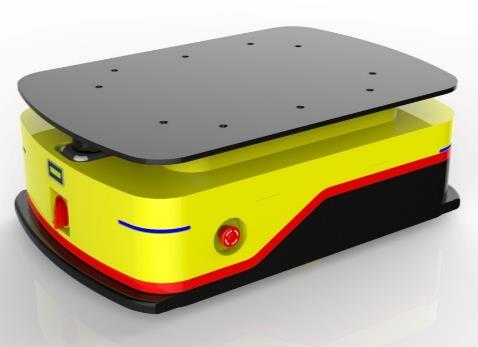

(TL-BF-300SL-001)		 Laser SLAM Navigation Bidirectional AGV (TL-BF-300SL-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 300Kg
Dimensions (L*W*H): 855*550*300mm (Customizable)
Navigation: Laser SLAM
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation
Speed: ≤1.2m/s
Battery: DC48V/30Ah LFP
Charging: Offline (Auto optional)
30 Laser SLAM Navigation Backpack AGV
(TL-BF-350SL-001)		 Laser SLAM Navigation Bidirectional AGV (TL-BF-350SL-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 300Kg
Dimensions (L*W*H): 805*500*400mm (Customizable)
Navigation: Laser SLAM
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation
Speed: ≤1.2m/s
Battery: DC48V/40Ah Lithium
Charging: Offline (Auto optional)
31 Laser SLAM Navigation Backpack AGV
(TL-BF-350SL-001)		 Laser SLAM Navigation Bidirectional AGV (TL-BF-350SL-001) with a yellow body, black base, and a small blue screen on the front. Load Type: Backpack
Max Load: 300Kg
Dimensions (L*W*H): 800*600*300mm (Customizable)
Navigation: Laser SLAM
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation
Speed: ≤1.2m/s
Battery: DC48V/30Ah LFP
Charging: Offline (Auto optional)
32 Laser SLAM Navigation Backpack AGV
(TL-BF-350SL-001)		 Laser SLAM Navigation Bidirectional AGV (TL-BF-350SL-001) with a yellow body, black base, and three shelves. Load Type: Backpack
Max Load: 300Kg
Dimensions (L*W*H): 1460*650*1250mm (Customizable)
Navigation: Laser SLAM
Drive Method: Differential Drive
Movement: Forward, Backward, 90-360° Rotation
Speed: ≤1.2m/s
Battery: DC48V/30Ah LFP
Charging: Offline (Auto optional)

Product Key Features

1. Easy Integration & Deployment

No need to modify your existing equipment. Our AGVs feature a standard modular design, allowing for flexible planning based on your production line’s specific characteristics. This ensures rapid deployment and efficient, fully automated operation.

2. Safe, Stable & Reliable

Equipped with omnidirectional automatic obstacle avoidance sensors, our AGVs maximize safety in human-machine collaborative environments. Intelligent hardware and advanced AI software algorithms guarantee stable and reliable operation.

3. Seamless Connectivity & 24/7 High-Efficiency Operation

Our AGVs utilize either lithium or lead-acid battery power supply options and come with an automatic charging function. This enables continuous 24-hour full-load operation, maximizing unmanned operations in the workshop and significantly boosting production efficiency.

4. Boost Efficiency & Reduce Labor Costs

Implementing our AGVs effectively solves the challenges of “difficult recruitment” and “labor shortages.” Machines replace manual labor for 24-hour operations, significantly reducing personnel costs, rapidly increasing production capacity and product quality, ultimately saving costs and enhancing efficiency for your business.

Product Application Scenarios

1. Replacing Manual Operations

AGVs operate fully automatically with unmanned driving, requiring no human intervention. They replace manual tasks such as automatic loading, unloading, handling, and conveying of materials on the production line, achieving unmanned operations in the workshop.

2. Replacing Traditional Conveyor Lines

By integrating AGV robots into enterprise production workshops, traditional conveyor belt production lines can be replaced. This simplifies and streamlines logistics, with AGVs seamlessly connecting upstream and downstream points for efficient material handling.

3. Replacing Traditional Manual Forklifts

With their fully automated intelligence, AGVs replace manual electric forklifts, enabling automatic picking, retrieving, and storing of palletized materials. This achieves intelligent, unmanned material handling.

4. Replacing Manual Services in Household & Medical Sectors

AGVs are not only applied in industrial settings but also extend to civilian sectors. They are used in restaurants and hotels for automatic meal delivery and beverage distribution. In hospitals, they perform automatic disinfection and sterilization in various areas, operating contact-free to prevent cross-infection.

Related products
