| Model | PLF042, PLF060, PLF090, PLF120, PLF160 |
|---|
Flexible Partnership Options: We welcome OEM/ODM projects, bulk orders, and distribution inquiries. Our dedicated team is ready to assist you with tailored solutions and responsive support. Free samples are available upon request to ensure your complete satisfaction.

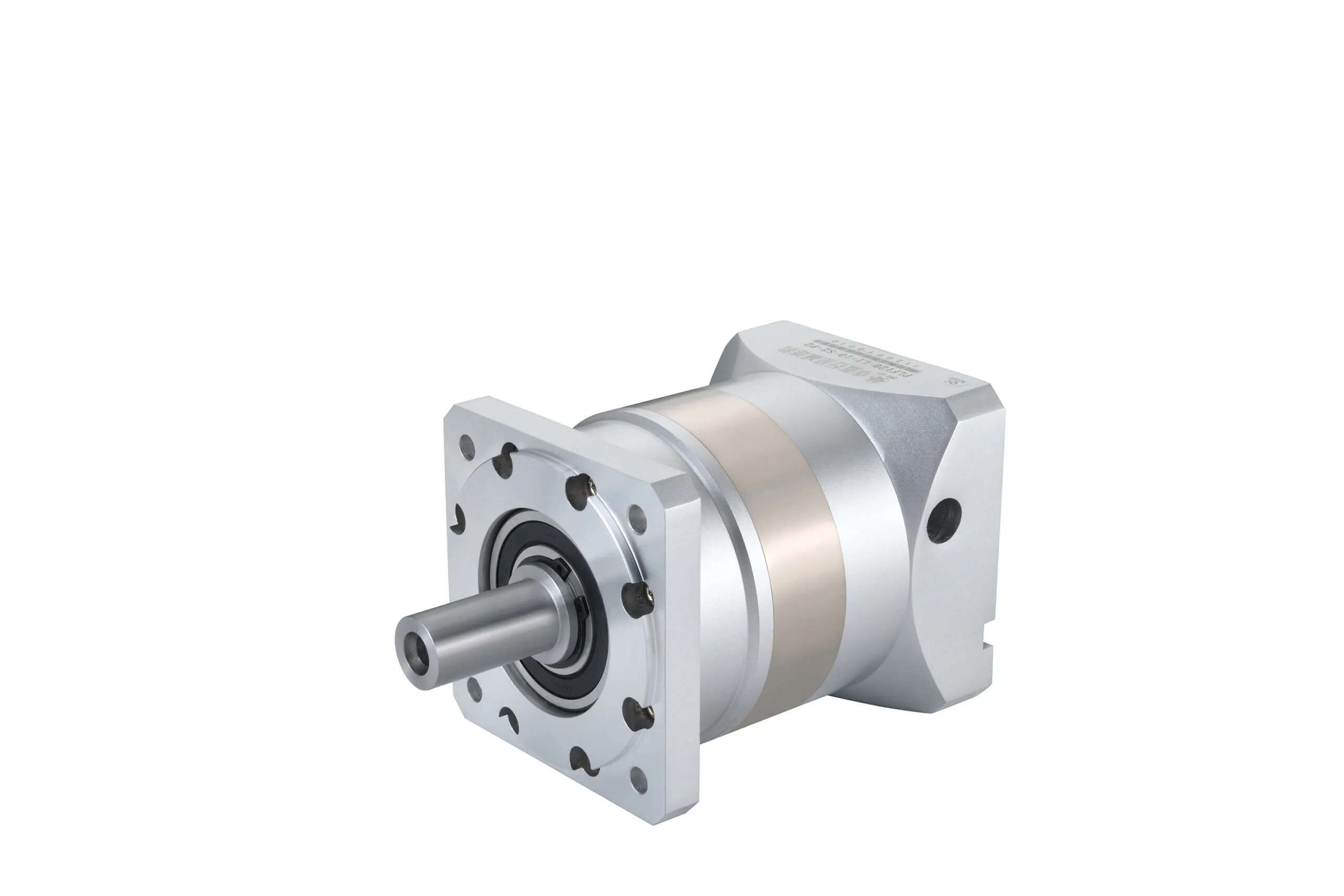

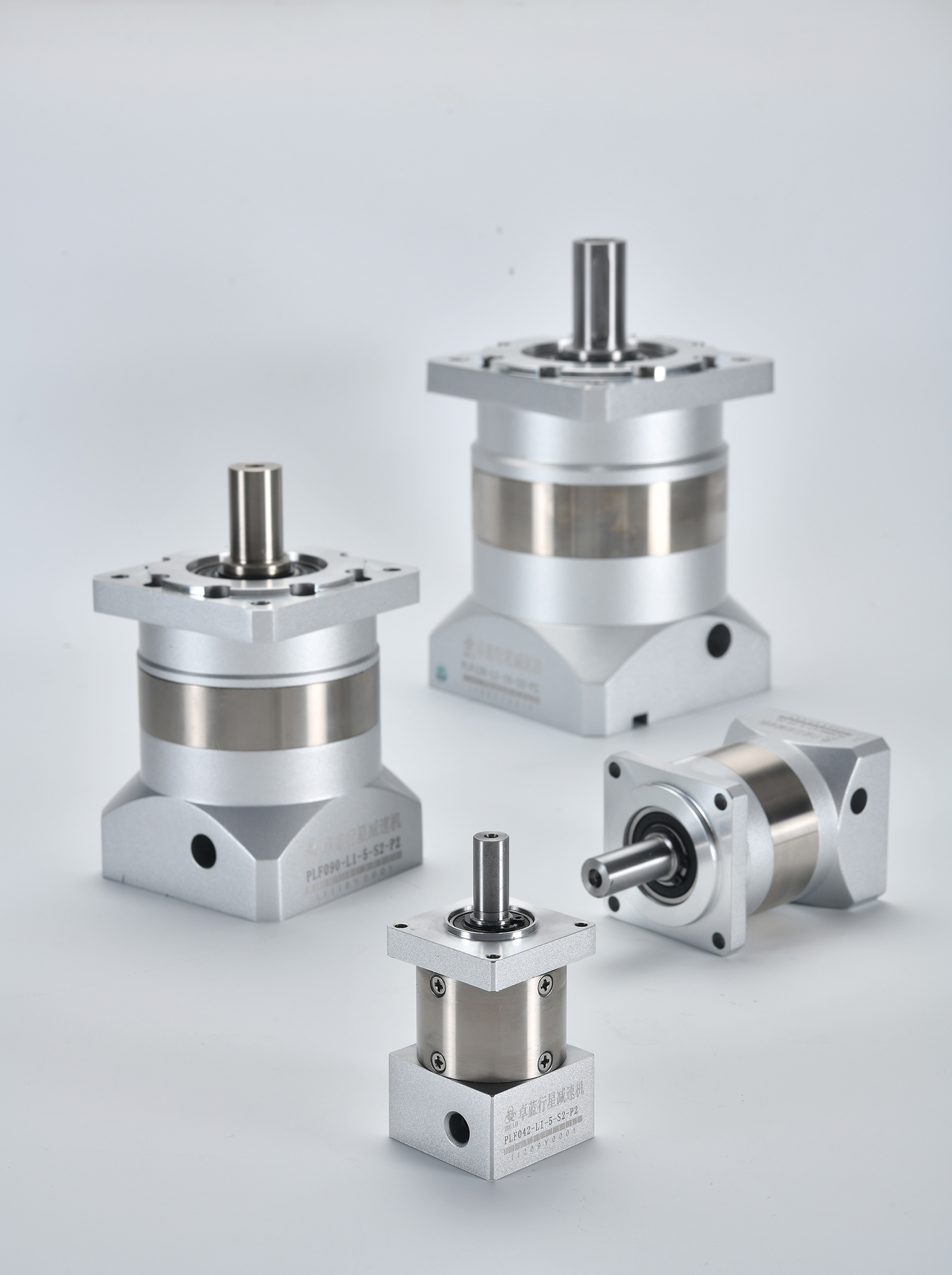

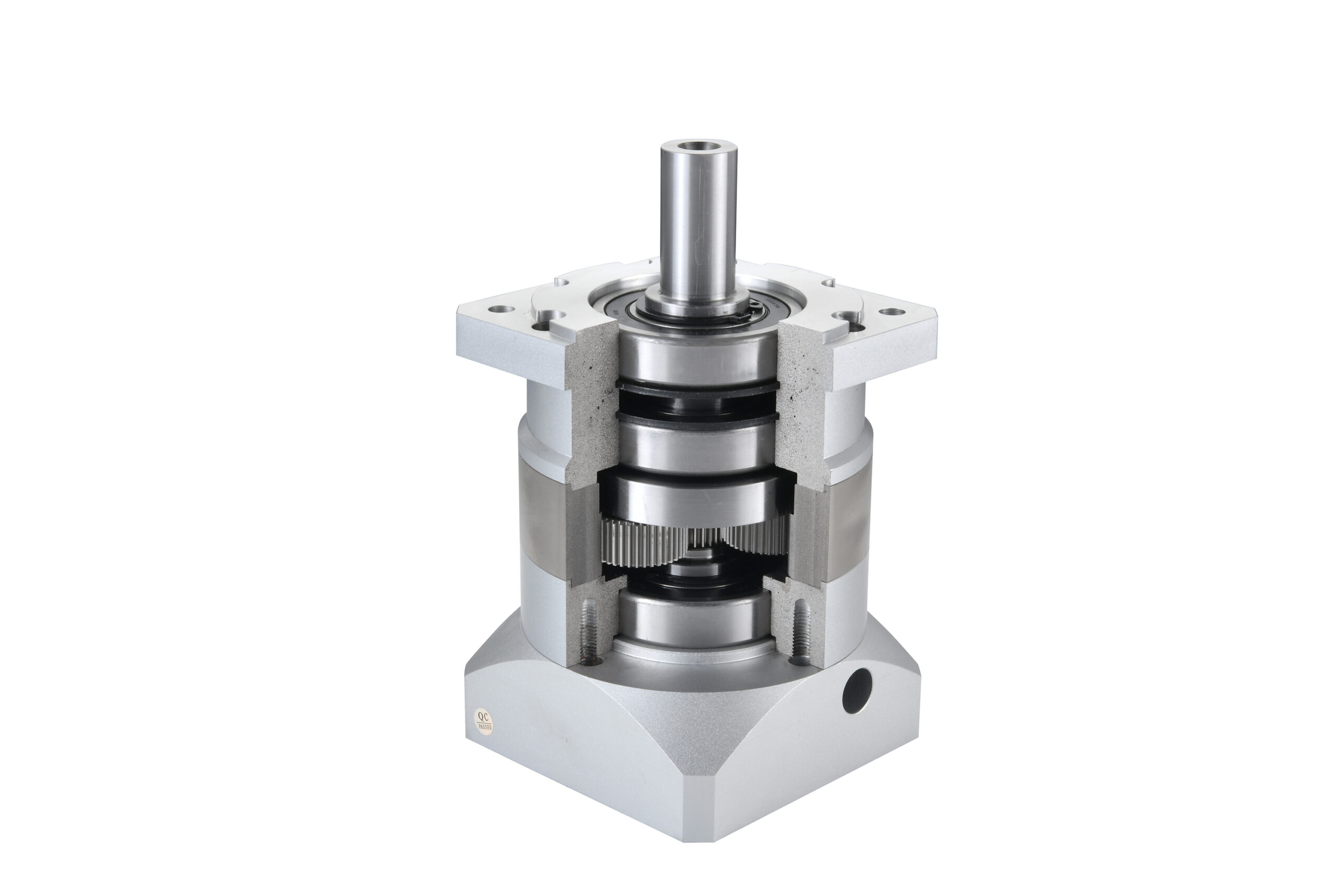

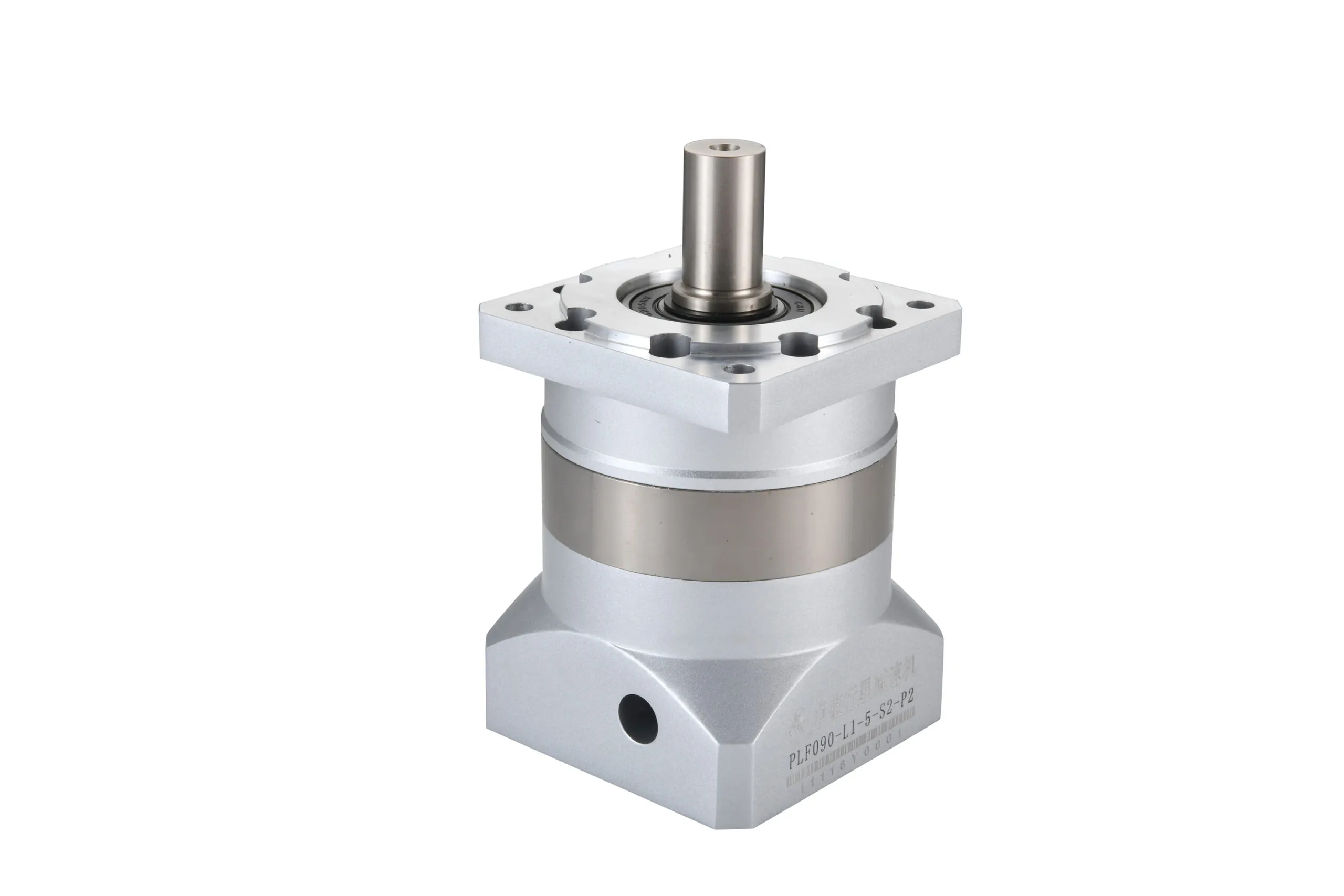

PLF inline planetary gearheads are cost effective, compact and rigid gearboxes with standard backlash and maintenance-free operation in gantry robotics and packaging machineries.Low noise and low temperature rise, synthetic lubricant and high efficiency power transmission to provide solid performance. Compatible with servo motors, stepping motors and brushless DC motors.
The PLF series planetary gearboxes stand out by integrating the best attributes of the standard output shaft series, thus ensuring enhanced radial and axial load capabilities. Its design includes a square mounting flange compatible with most common frame size planetary gearbox applications, making it a versatile option. With over 28 different reduction ratio options available, including maximum reduction ratios up to 512:1, it’s easy to find the perfect match for your precise requirements. PLF’s exceptional performance, reliability and adaptability make it the ideal solution for demanding industrial tasks requiring precise and robust motion control.
| Frame size (mm) | 42，60, 80, 90，120，160 |
| Ratio | 3-512:1 |
| Nominal input speed (rpm) | 2500-4000 |
| Max. input speed (rpm) | 5000-6000 |
| Backlash (arcmin) | 6-8 single stage, 8-10 two stages, 12 three stages |
| Noise level (dBA/1m) | 60-65 |
| Enclosure | IP54 (output shaft IP65) |
| Lubricant | lifetime synthetic lubricant |
