VLF Series Precision Helical Planetary Gearbox

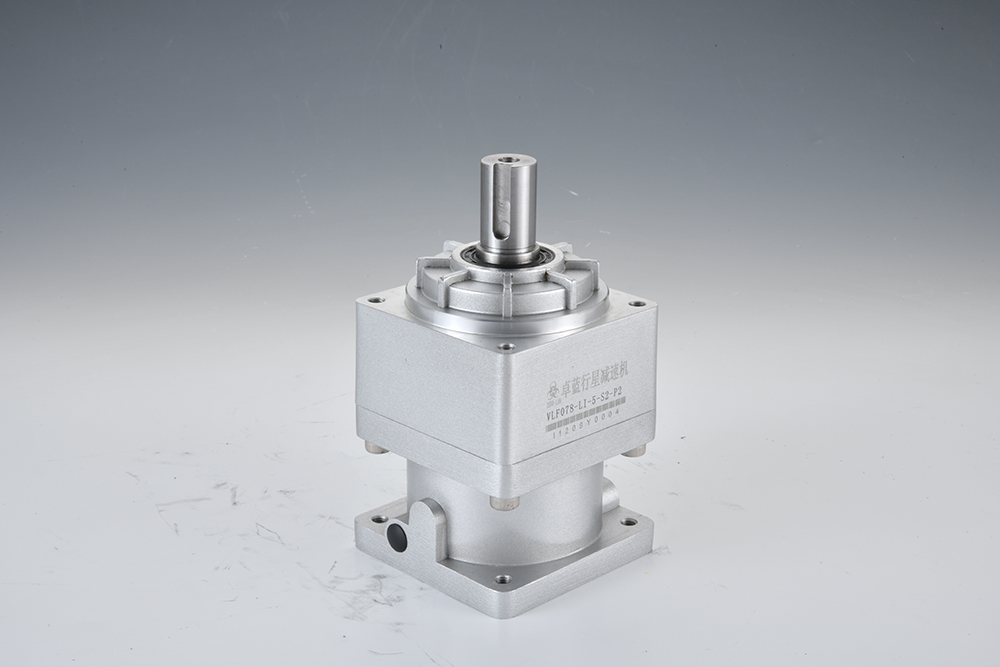

A silver planetary gearbox, model VLF078-L1-5-S2-P2, with a keyed output shaft, standing upright on a white background.

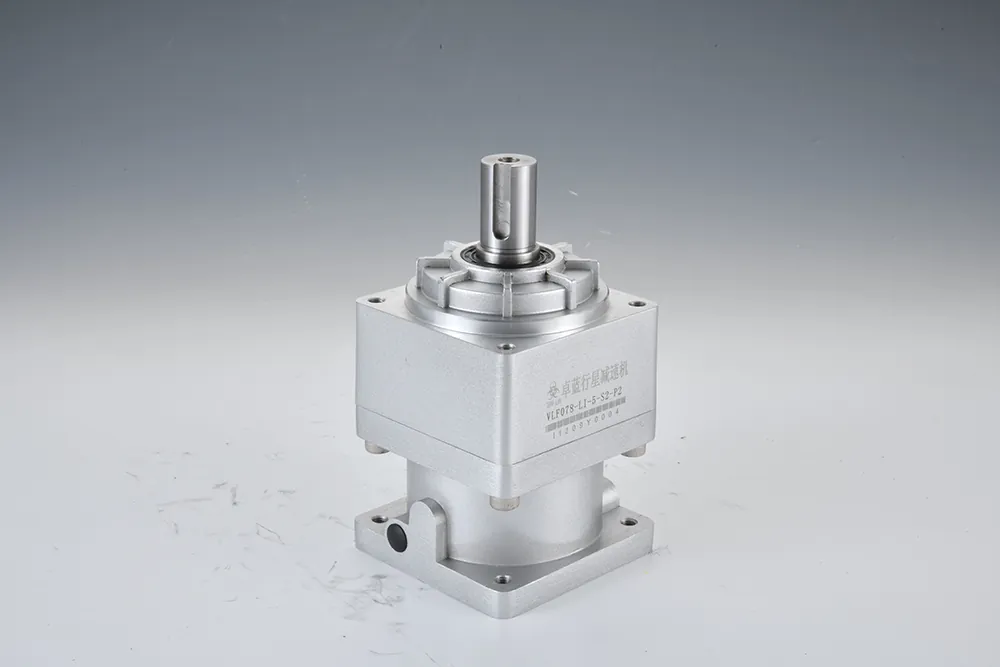

A silver planetary gearbox, model VLF078-L1-5-S2-P2, with a keyed output shaft, on a white surface with a gray background.

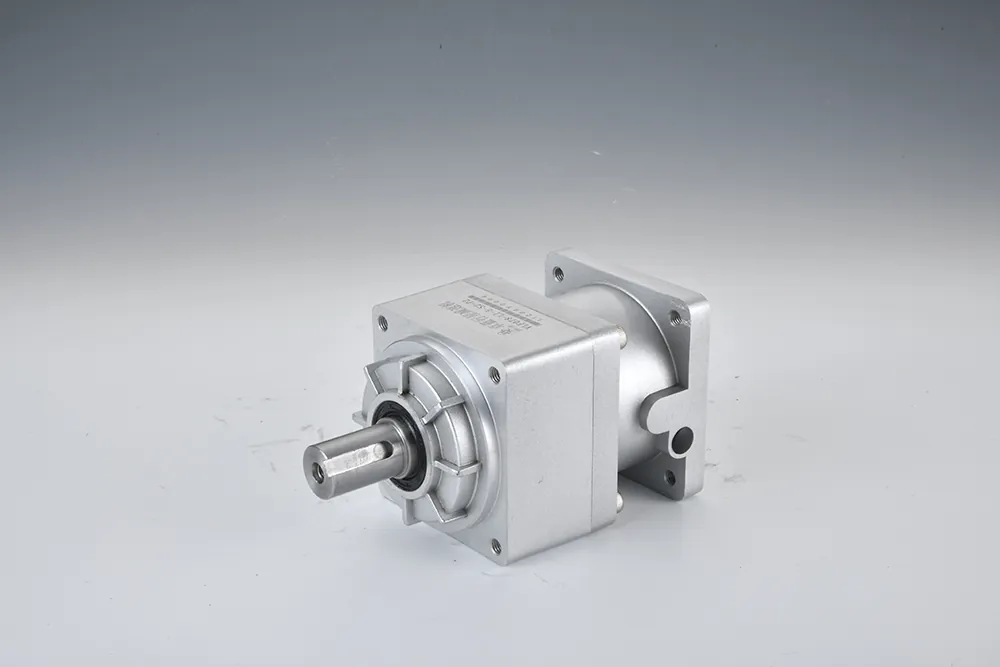

A silver planetary gearbox, model VLF078-L1-5-S2-P2, with a keyed output shaft, lying on its side on a white surface.
VLF Series Precision Helical Planetary Gearbox

Additional information

Model

VLF078
  • In-line planetary gearhead featuring a zero-slip clamping mechanism
  • Hollow output shaft and flange designed for easy mounting to belt or ball screw modules
  • Monolithic planet carrier/output shaft for enhanced rigidity
  • Precision alloy steel gears for superior performance
  • Lifetime lubrication with IP65-rated sealing
  • Low noise, low vibration, and maintenance-free operation under standard conditions
Get A Quote
Download Manual

Flexible Partnership Options: We welcome OEM/ODM projects, bulk orders, and distribution inquiries. Our dedicated team is ready to assist you with tailored solutions and responsive support. Free samples are available upon request to ensure your complete satisfaction.

Product Description

ALF inline planetary gearheads are designed to bolt-on linear actuator drive systems or cartesian robotics to shorten powertrain length. Dynamic balanced collar clamping mechanism to actuator and motor shaft ensuring interfaces concentricity and zero slip power transmission at high speed. High quality gears and components are utilized to create compact and rigid unit with low backlash and maintenance-free operation.The VLF compatible with 400W and 750W servo motors, offering reduction ratios of 5:1 and 9:1, respectively.

Product Parameters

Frame size (mm) 78
Ratio 5-9:1
Nominal input speed (rpm) 1500-3000
Max. input speed (rpm) 3000-6000
Backlash (arcmin) 5 single stage
Noise level (dBA/1m) 55
Enclosure IP54 (output shaft IP65)
Lubricant service life synthetic lubricant
Max. radial load (N) 1200-15000
Service life (hrs) 20000

Key Features

  • Helical gear transmission, treated with carburizing and quenching, along with tooth profile modifications, ensuring quiet operation and smooth performance. The load-bearing capacity exceeds that of straight-cut gears by 20%.
  • A one-piece output shaft with bearing support at both ends of the planetary gears, ensuring high precision and strength.
  • Minimal backlash, with a single-stage precision design achieving less than 5 arc minutes of backlash.
