| Model | WDSS230, WDSS250, WDSS300, WDSS400, WDSS580, WDSS780 |
|---|
AGV (Automated Guided Vehicle) technology is revolutionizing the way companies operate their manufacturing plants and warehouses. One key component of an AGV is the drive wheel with encoder. This wheel allows the AGV to accurately navigate its surroundings and carry out tasks efficiently.
The AGV drive wheel with encoder works by using a series of sensors to measure the wheel’s rotation and velocity. These sensors send real-time data to the AGV’s control system, allowing it to make precise movements and react quickly to changes in its environment.

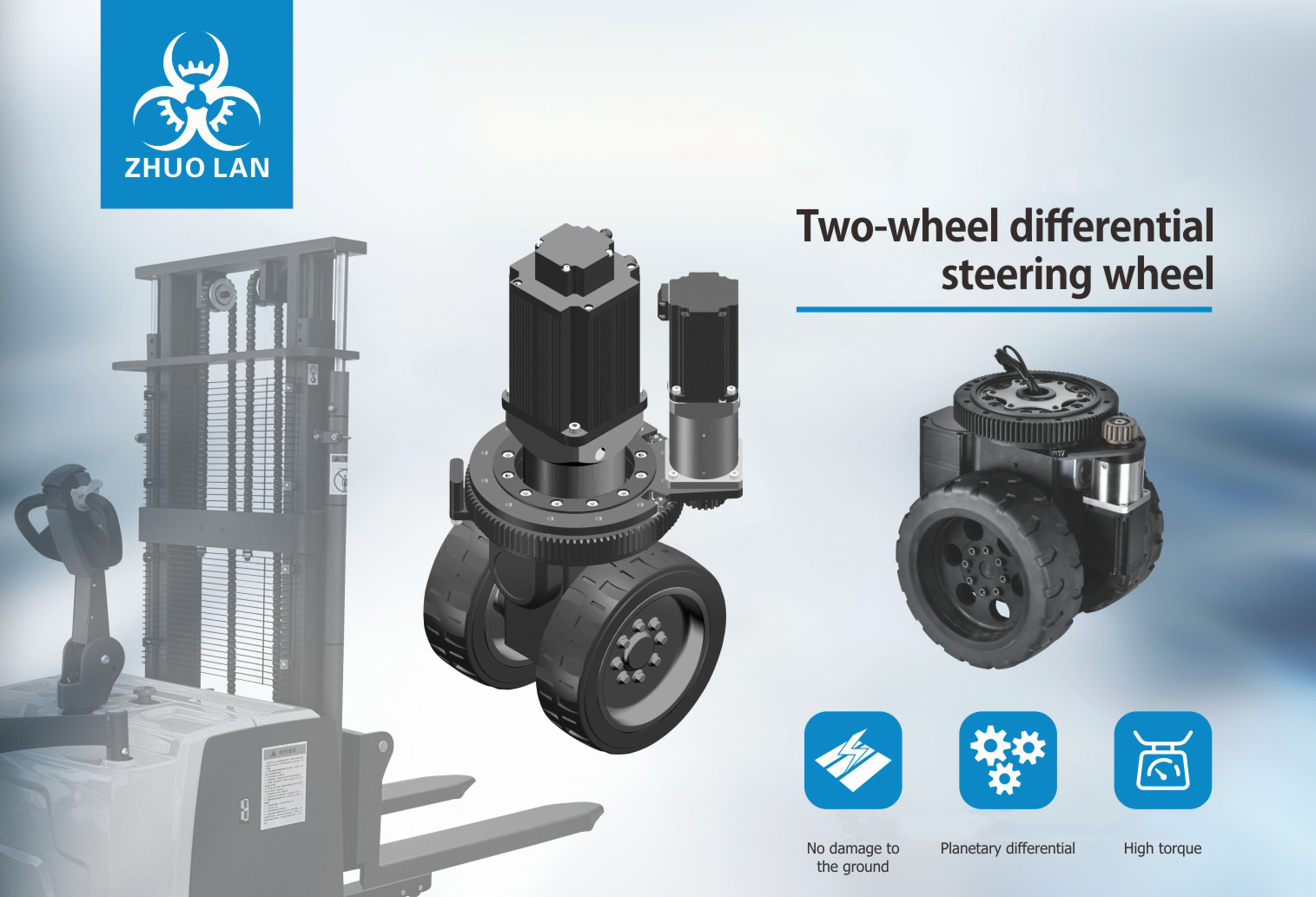

This WDSS drive wheel has two encoders,one on the motor and another on the steering gear wheel, which has much higher accuracy.and the radius of gyration of TZ09-D065S02 is smaller,
it’s better for designing of agv.
Flexible Partnership Options: We welcome OEM/ODM projects, bulk orders, and distribution inquiries. Our dedicated team is ready to assist you with tailored solutions and responsive support. Free samples are available upon request to ensure your complete satisfaction.
One major benefit of AGVs with drive wheels and encoders is their ability to operate autonomously. This means that they can navigate through a facility without the need for human intervention, freeing up valuable time and resources for companies. This also results in increased accuracy and efficiency in material handling and production operations.
In addition to their autonomous capabilities, AGV drive wheels with encoder also have a proven track record of improving safety in manufacturing and warehouse environments. By reducing the need for human intervention, AGVs eliminate the risk of injuries and accidents caused by human error.
AGV drive wheels with encoder are a highly effective solution for companies looking to improve their manufacturing and warehouse operations. With their advanced technology and proven performance, they offer a positive and forward-thinking solution for businesses seeking to increase efficiency, reduce costs, and improve safety.
| WDS series | WDSS230 | WDSS250 | WDSS300 | WDSS400 | WDSS580 |
| Outside diameter of wheel | 230 | 250 | 300 | 400 | 580 |
| Motor power | 750W+1500W | 750W+1500W | 750W+2300W | 1500W+3000W | 2350W+7500W |
| Motor voltage | 48V | 48V | 48V | 48V | 72V |
| Polyurethane load-bearing | 1600KG | 2200KG | 3600KG | 5000KG | 11200KG |
| Maximum velocity | 36-90M/min | 39-98M/min | 47-117M/min | 31-52M/min | 20-33M/min |
| Traction weight | 1408-2782KG | 1296-2560KG | 1577-2133G | 4617-5062KG | 9682KG |
