ZAL Series Precision Helical Planetary Gearbox

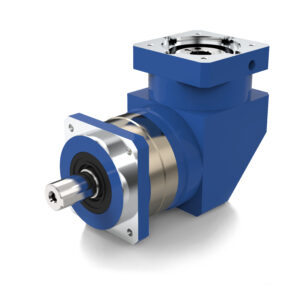

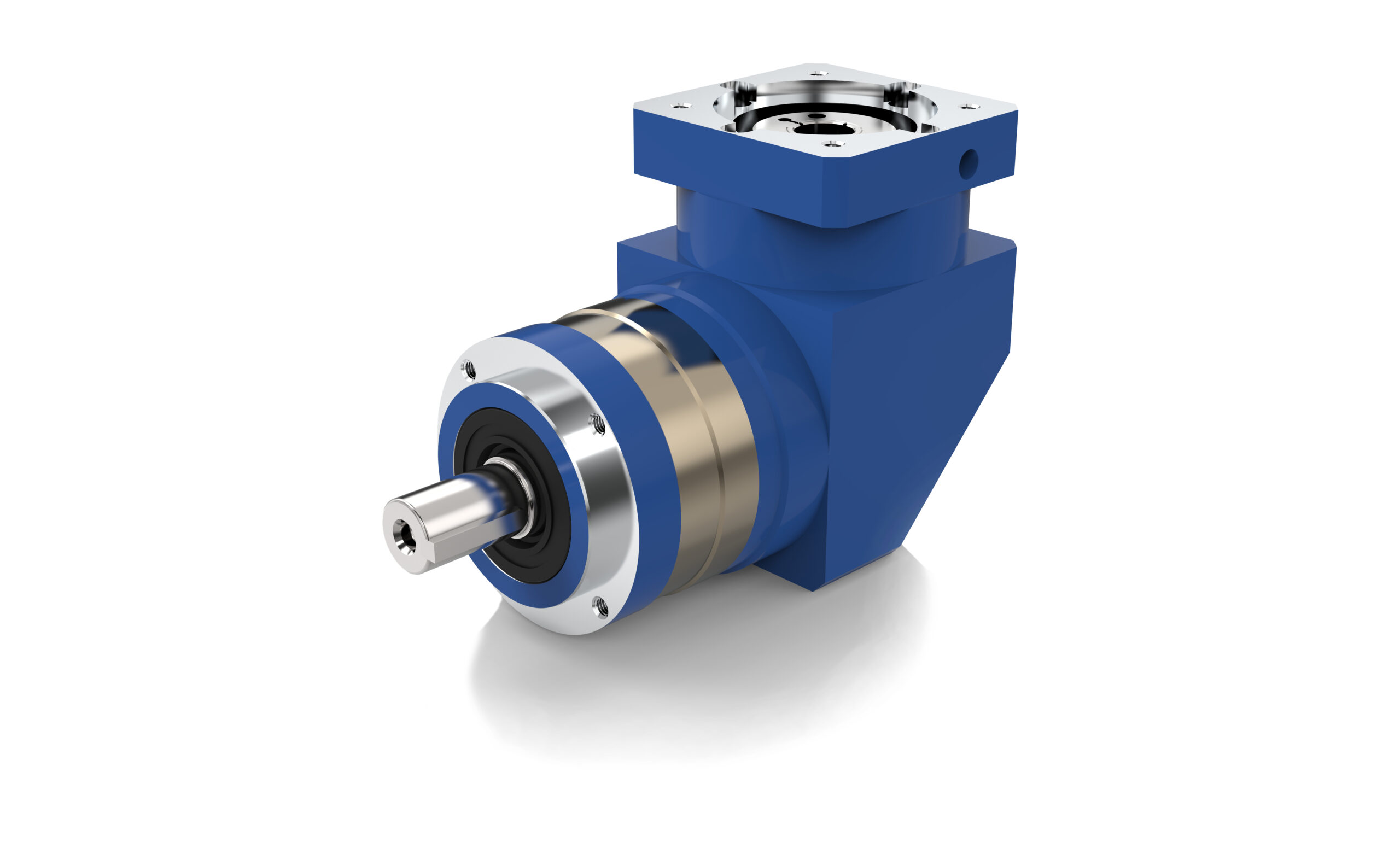

A blue right-angle planetary gearbox with a silver output shaft and mounting flange, positioned on a white surface with a subtle reflection.

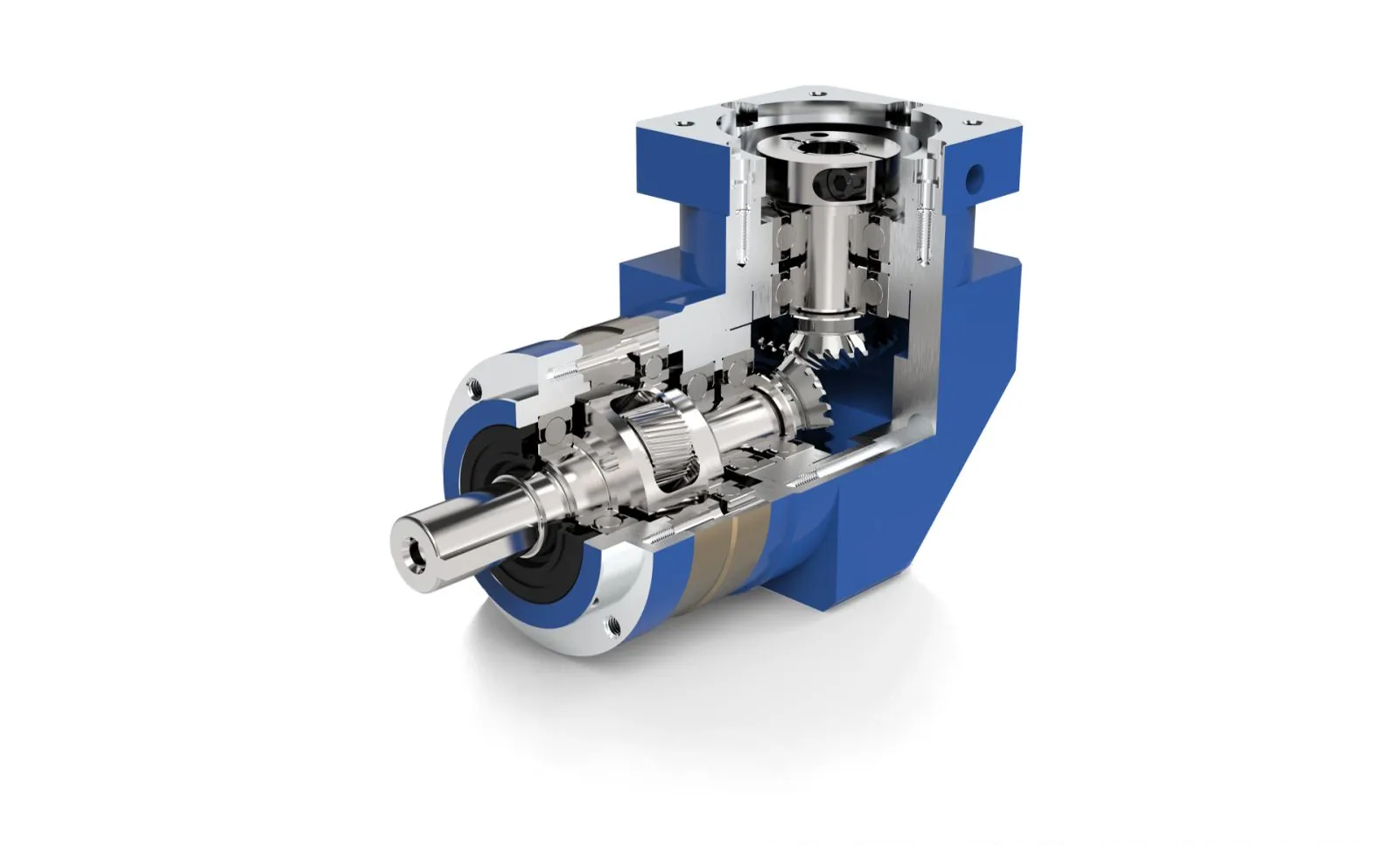

A cutaway view of a blue right-angle planetary gearbox, revealing the internal silver gears, bearings, and shafts.
ZAL Series Precision Helical Planetary Gearbox

Additional information

Model

ZAL070, ZAL090, ZAL120, ZAL155, ZAL205
  1. Two levels of backlash, available in 7 frame sizes ranging from 60 mm to 220 mm
  2. Premium, precision gear design with reduction ratios from 3:1 to 200:1
  3. Monolithic planet carrier/output shaft, offering high rigidity and enhanced radial load capacity
  4. Hardened and ground gears for superior wear resistance and impact toughness
  5. Integrated ring gear and housing for high precision and torque output
  6. Planet gears supported by full needle bearings for increased durability
  7. IP65-rated enclosure with synthetic lubricant, ensuring a maintenance-free operational life
Get A Quote
Download Manual

Flexible Partnership Options: We welcome OEM/ODM projects, bulk orders, and distribution inquiries. Our dedicated team is ready to assist you with tailored solutions and responsive support. Free samples are available upon request to ensure your complete satisfaction.

Product Description

The ZAL Precision Series right-angle housing, square mounting flange, with caged precision class helical planetary gears, in sizes through 220 mm. High torque capacity, quiet operation and backlash as low as <5 arcmin. The square output flange makes it particularly easy to install and save spaces for a wide range of applications. ZAF series gearhead overall design suitable for combination operation with servo motor high-speed input and achieves maximum torque output. Precision gear design and gear processing create a planetary gearhead with low backlash operation, high efficiency, low noise and long service life performances.

Product Parameters

Frame size (mm) 60,90,115,140,180,220
Ratio 3-100:1
Nominal input speed (rpm) 1500-3000
Max. input speed (rpm) 3000-6000
Backlash (arcmin) 5 single stage, 7 two stages,
Noise level (dBA/1m) 55-70
Enclosure IP54 (output shaft IP65)
Lubricant service life synthetic lubricant
Max. radial load (N) 1200-15000
Service life (hrs) 20000

Key Features

  • Helical gear transmission with carburizing and quenching treatment, along with tooth profile modifications, ensuring quiet operation and smooth performance. The load-bearing capacity is 20% greater than that of straight-cut gears.
  • A monolithic output shaft with bearing support at both ends of the planetary gears, ensuring high precision and structural strength.
  • Minimal backlash, with a precision single-stage design achieving less than 5 arc minutes of backlash.

Images

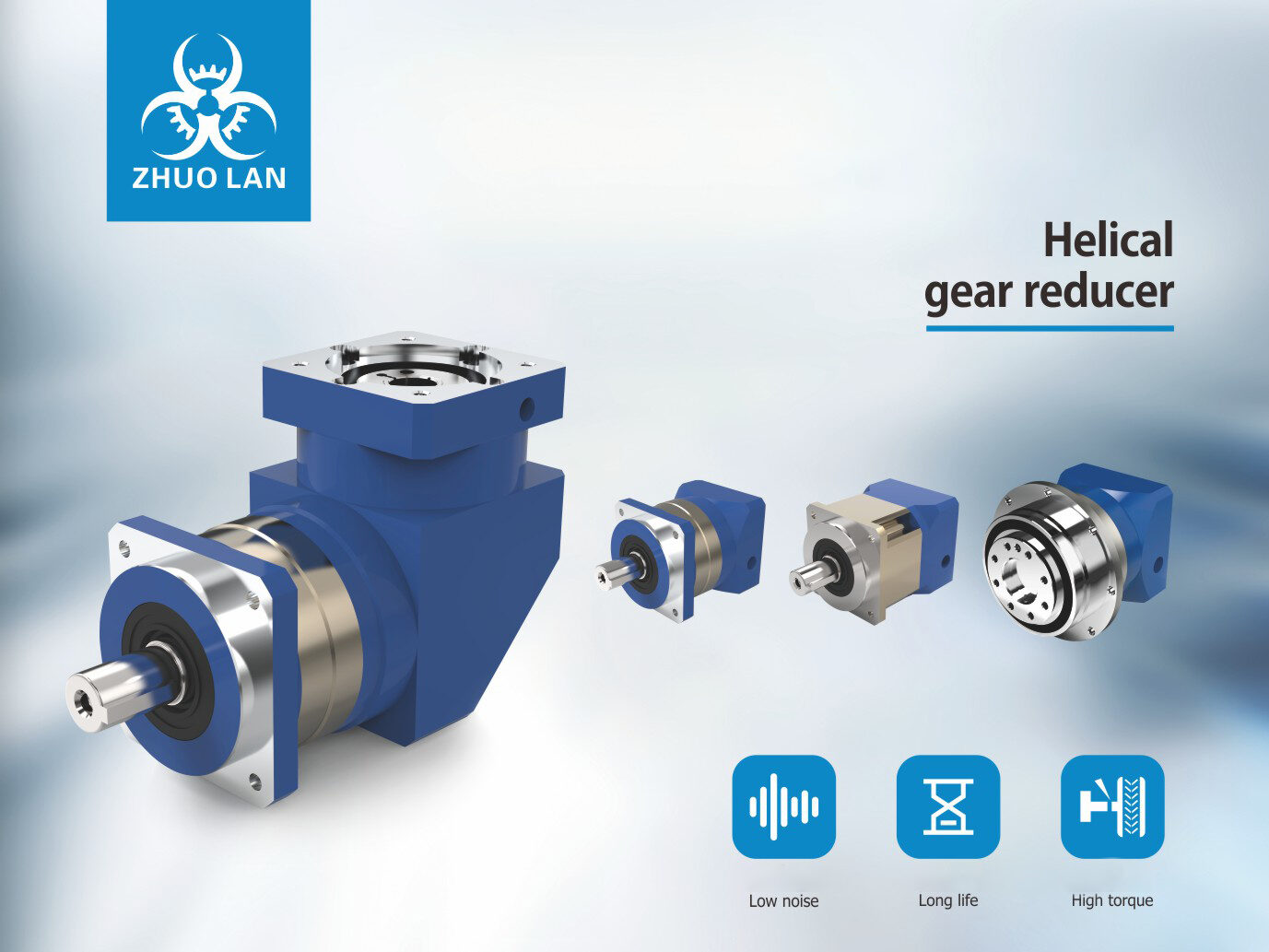

Four blue and silver planetary gearboxes, including right-angle and inline models, are arranged on a white surface.
