ZPLE Series Standard Planetary Gearbox

A silver and gray right-angle planetary gearbox with a horizontal output shaft and a vertical input flange, featuring a label with "ZPLE090-L1-10-S2-P2" and Chinese characters.

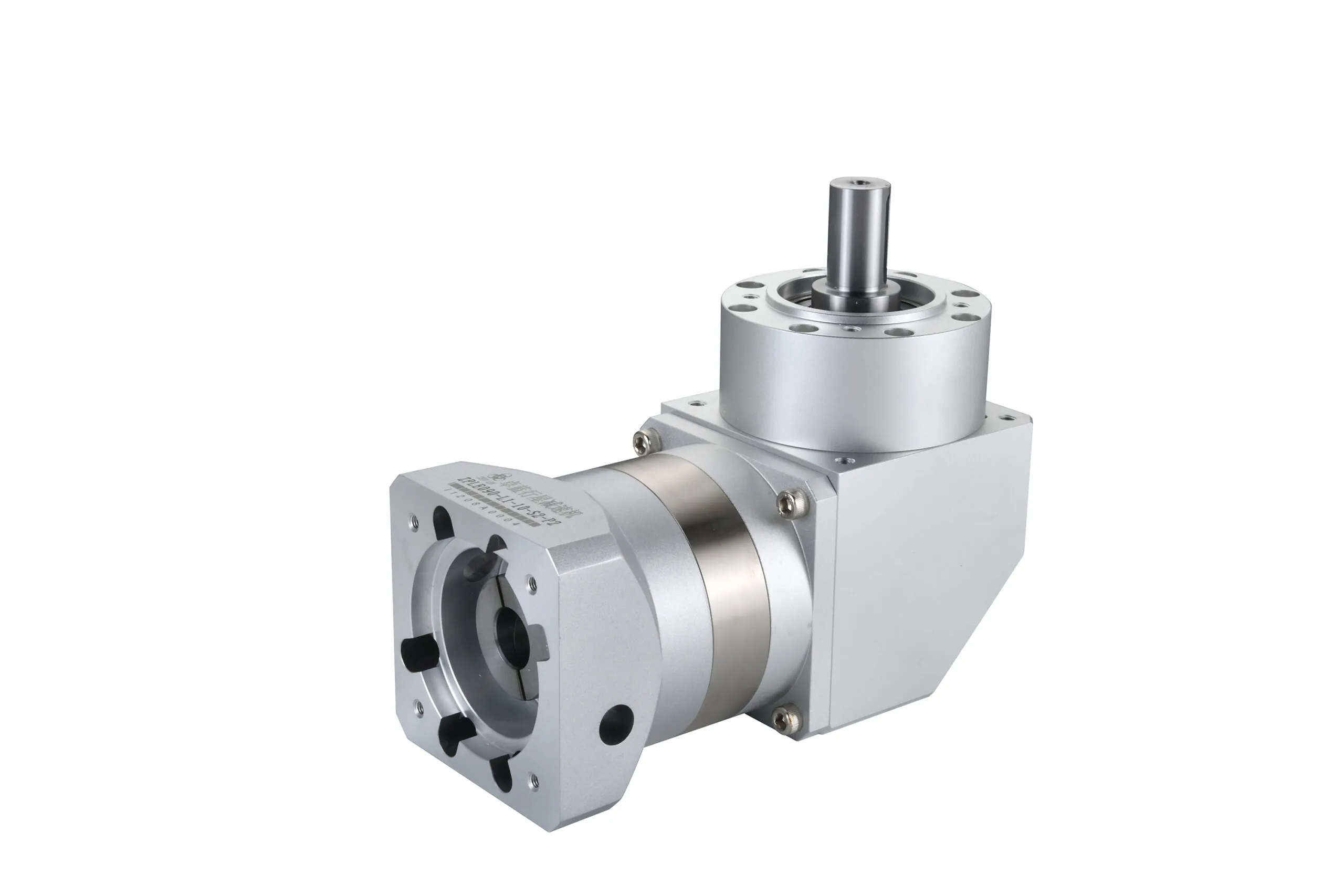

A silver and gray right-angle planetary gearbox with a vertical output shaft and a horizontal input flange, featuring a label with "ZPLB090-L1-10-S2-P2" and Chinese characters.
A silver and gray right-angle planetary gearbox with a horizontal output shaft and a vertical input flange, featuring a label with "ZPLE090-L1-10-S2-P2" and Chinese characters.
ZPLE Series Standard Planetary Gearbox

Additional information

Model

ZPLE060, ZPLE090, ZPLE120, ZPLE160
  • Inline setup with a square output flange.
  • Output shaft diameters: 10, 14, 20, 25, and 40 mm.
  • Torque capacity spans from 21 Nm to 900 Nm.
  • Standard planetary gear arrangement.
  • High performance, excellent efficiency, and low noise levels.
  • Extensive selection of reduction ratios, from 3:1 to 350:1.
  • Output bearings provide radial load strength up to 4370 N and axial load capacity up to 2750 N.
Get A Quote
Download Manual

Flexible Partnership Options: We welcome OEM/ODM projects, bulk orders, and distribution inquiries. Our dedicated team is ready to assist you with tailored solutions and responsive support. Free samples are available upon request to ensure your complete satisfaction.

Product Description

Right angle output flange planetary gearheads are designed to bolt-on linear actuator drive systems or cartesian robotics to shorten powertrain length. Dynamic balanced collar clamping mechanism to actuator and motor shaft ensuring interfaces concentricity and zero slip power transmission at high speed. High quality gears and components are utilized to create compact and rigid unit with low backlash and maintenance-free operation.
The ZPLE series of planetary reducers stands out by integrating the best attributes of conventional output shaft designs, ensuring exceptional performance under both radial and axial loads. These reducers boast a square mounting flange, which guarantees compatibility with the majority of standard planetary gearbox frame sizes, providing significant flexibility. With over 28 reduction ratios at your disposal, including an extreme ratio of 350:1, it is easy to find the perfect fit for your particular requirements. The ZPLE’s remarkable efficiency, dependability, and adaptability make it an ideal choice for challenging industrial settings that demand accurate and robust motion control.

Product Parameters

Frame size (mm) 42，60, 80, 90，120，160
Ratio 3-350:1
Nominal input speed (rpm) 2500-4000
Max. input speed (rpm) 5000-6000
Backlash (arcmin) 8-10 single stage, 10-12 two stages,
12-15 three stages
Noise level (dBA/1m) 60-65
Enclosure IP54 (output shaft IP65)
Lubricant lifetime synthetic lubricant

Core Characteristics

  • Utilizes straight-cut gear transmission, subjected to carburizing and quenching, along with tooth profile modifications, ensuring smooth operation and minimal noise.
  • Features a straightforward design, enabling large-scale production, fast lead times, and excellent cost efficiency.
  • The gearbox offers a comprehensive range, capable of fulfilling the demands of most reducers available in the market.

Images

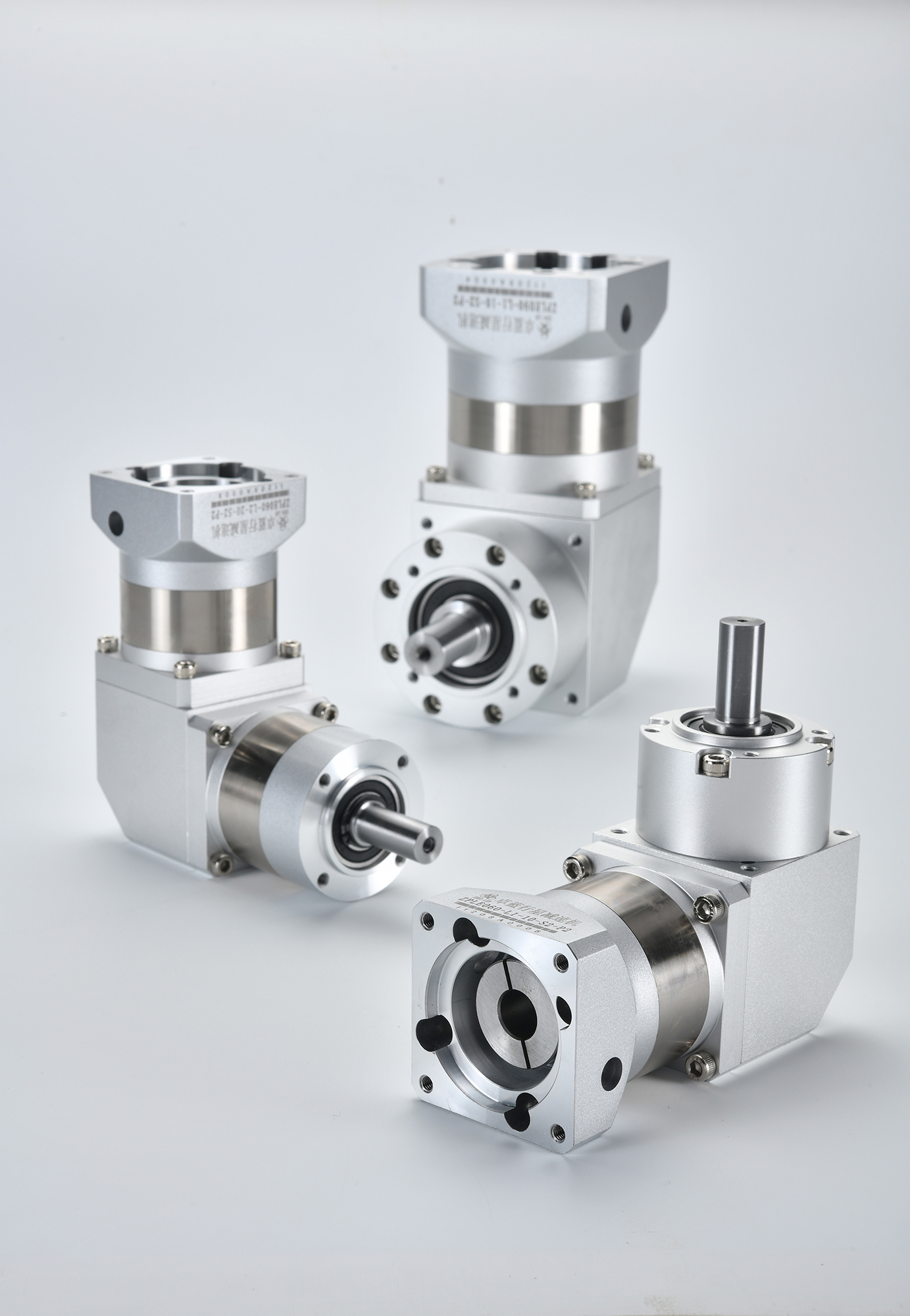

Three silver and gray right-angle planetary gearboxes on a white surface, two with horizontal output shafts and one with a vertical output shaft.A brand advertisement for "Straight gear reducer" featuring various silver gearboxes, including inline and right-angle models, with icons for "Low noise," "High Precision," and "High torque."
