ZPLF Series Standard Planetary Gearbox

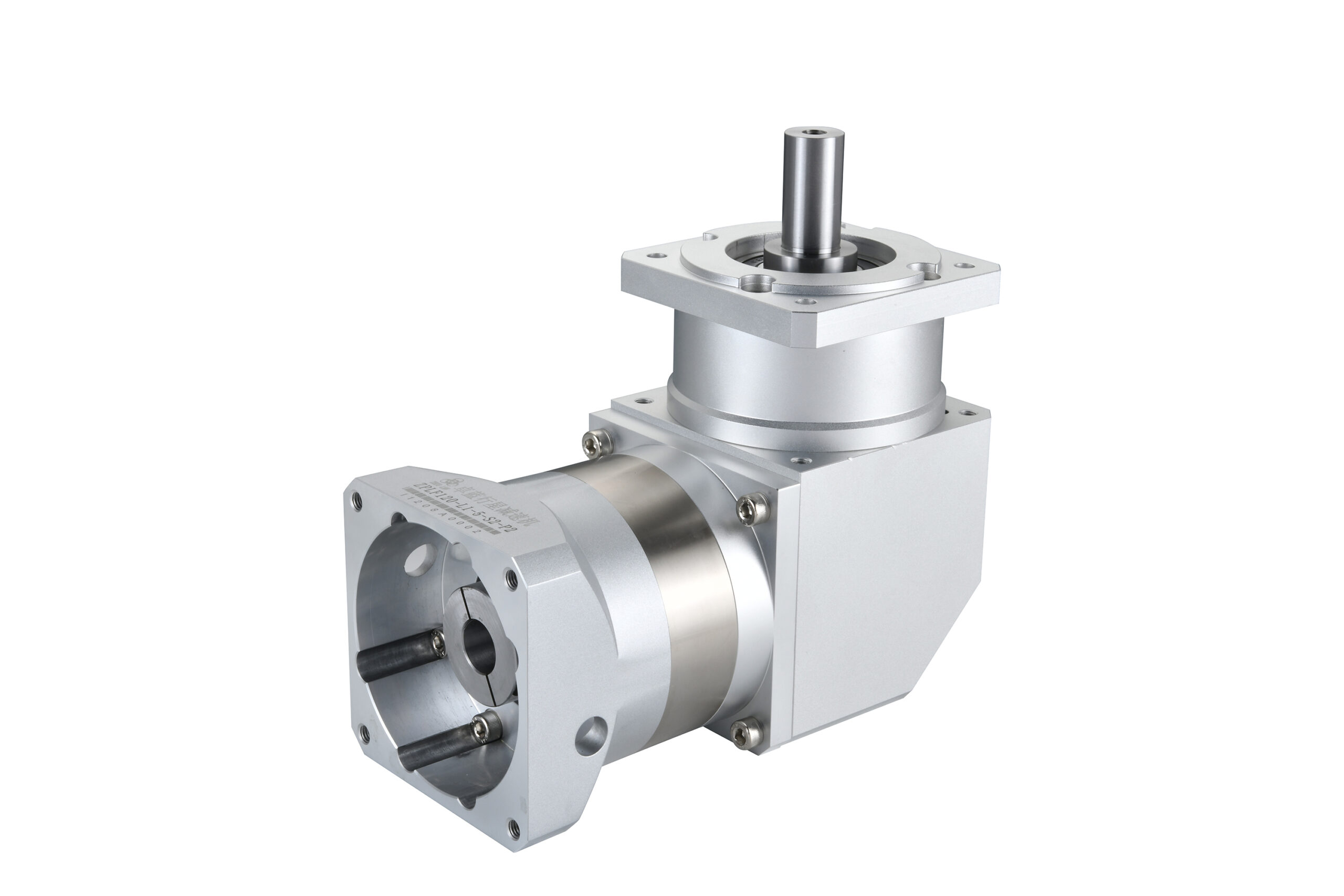

A silver and gray right-angle planetary gearbox with a horizontal output shaft and a vertical input flange, featuring a label with "ZPLX142-L2-5-S2-P2" and Chinese characters.
A silver and gray right-angle planetary gearbox with a horizontal output shaft and a vertical input flange, featuring a label with "ZPLP120-L1-5-S2-P2" and Chinese characters.

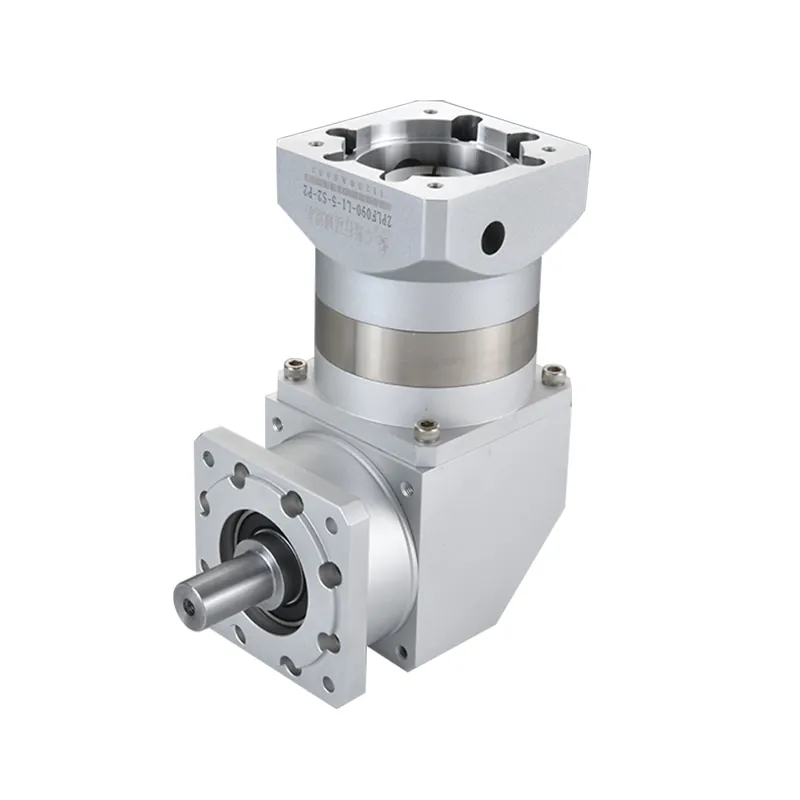

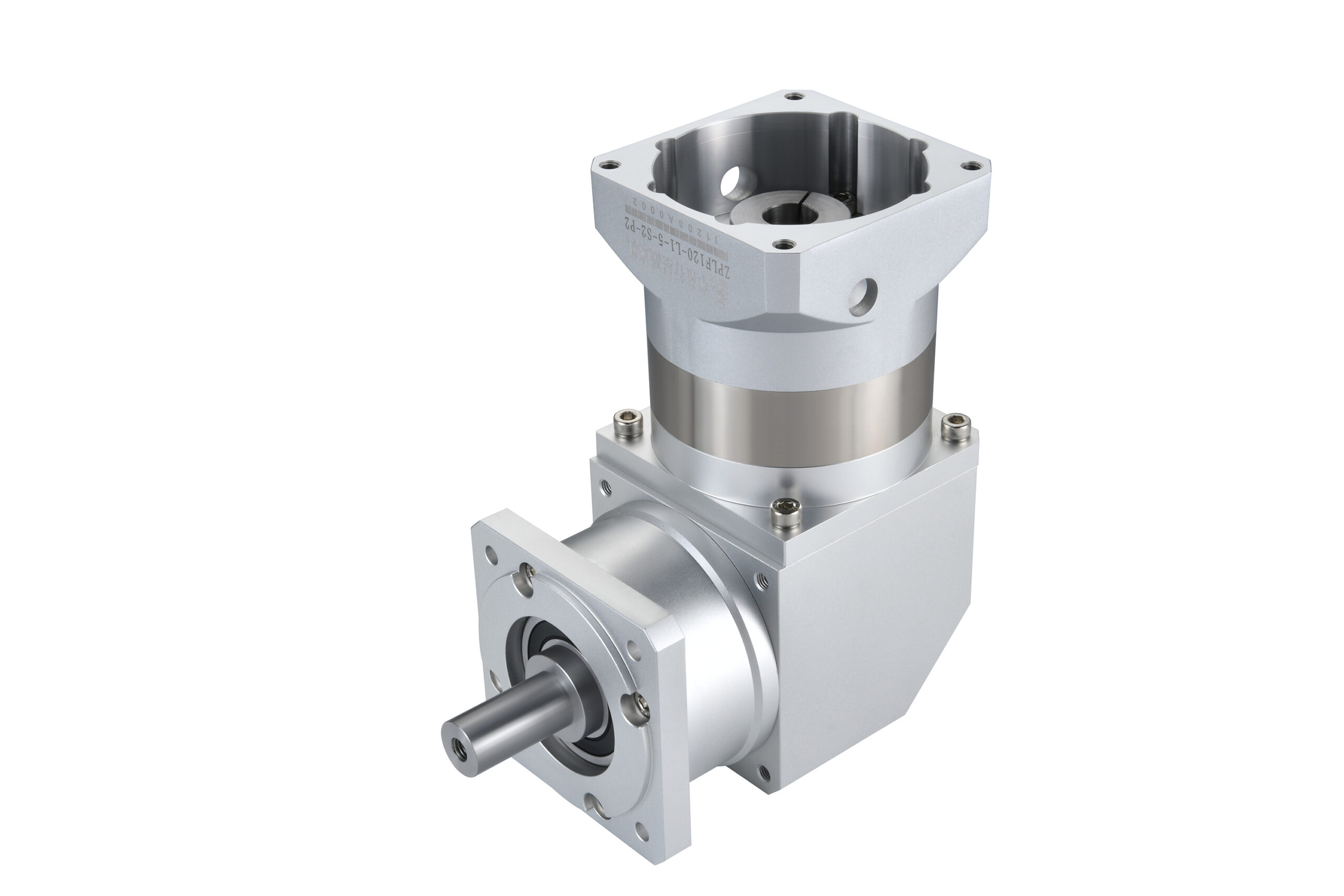

A silver and gray right-angle planetary gearbox with a horizontal output shaft and a vertical input flange, featuring a label with "ZPLF090-L1-5-S2-P2" and Chinese characters.
A silver and gray right-angle planetary gearbox with a vertical output shaft and a horizontal input flange, featuring a label with "ZPLF120-L1-5-S2-P2" and Chinese characters.
ZPLF Series Standard Planetary Gearbox

Additional information

Model

ZPLF060, ZPLF090, ZPLF120, ZPLF160
  • Inline setup featuring a square output flange.
  • Output shaft diameters: 10, 14, 20, 25, and 40 mm.
  • Torque capacity ranges from 21 Nm to 900 Nm.
  • Standard planetary gear configuration.
  • High performance, excellent efficiency, and low noise levels.
  • Broad selection of reduction ratios, ranging from 3:1 to 350:1.
  • Output bearings provide radial load strength up to 4370 N and axial load capacity up to 2750 N.
Get A Quote
Download Manual

Flexible Partnership Options: We welcome OEM/ODM projects, bulk orders, and distribution inquiries. Our dedicated team is ready to assist you with tailored solutions and responsive support. Free samples are available upon request to ensure your complete satisfaction.

Product Description

Right-angle output flange planetary gearheads are engineered for direct mounting on linear actuator drive systems or Cartesian robotics, effectively reducing powertrain length. The dynamically balanced collar clamping mechanism ensures precise concentricity between the actuator and motor shafts, eliminating slip and enabling efficient power transmission at high speeds. Premium gears and components are incorporated to form a compact, rigid unit with low backlash and a maintenance-free operational life.
The ZPLF series planetary reducers are distinguished by combining the best features of standard output shaft designs, delivering superior radial and axial load capacities. Its structure includes a square mounting flange, ensuring compatibility with most widely used planetary gearbox frame sizes, offering great versatility. With more than 28 available reduction ratios, including a maximum of 350:1, it’s easy to select the ideal match for your specific needs. ZPLF’s outstanding performance, dependability, and flexibility make it the perfect solution for demanding industrial applications requiring precise, durable motion control.

Product Parameters

Frame size (mm) 42，60, 80, 90，120，160
Ratio 3-350:1
Nominal input speed (rpm) 2500-4000
Max. input speed (rpm) 5000-6000
Backlash (arcmin) 6-8 single stage, 8-10 two stages,
12 three stages
Noise level (dBA/1m) 60-65
Enclosure IP54 (output shaft IP65)
Lubricant lifetime synthetic lubricant

Core Characteristics

  • Utilizes straight-cut gear transmission, with carburizing and quenching treatment, along with tooth profile modifications, ensuring smooth operation and minimal noise.
  • Features a straightforward design, enabling mass production, quick lead times, and excellent cost-effectiveness.
  • The gearbox offers a full range of options, capable of meeting the demands of most reducers available in the market.

Images

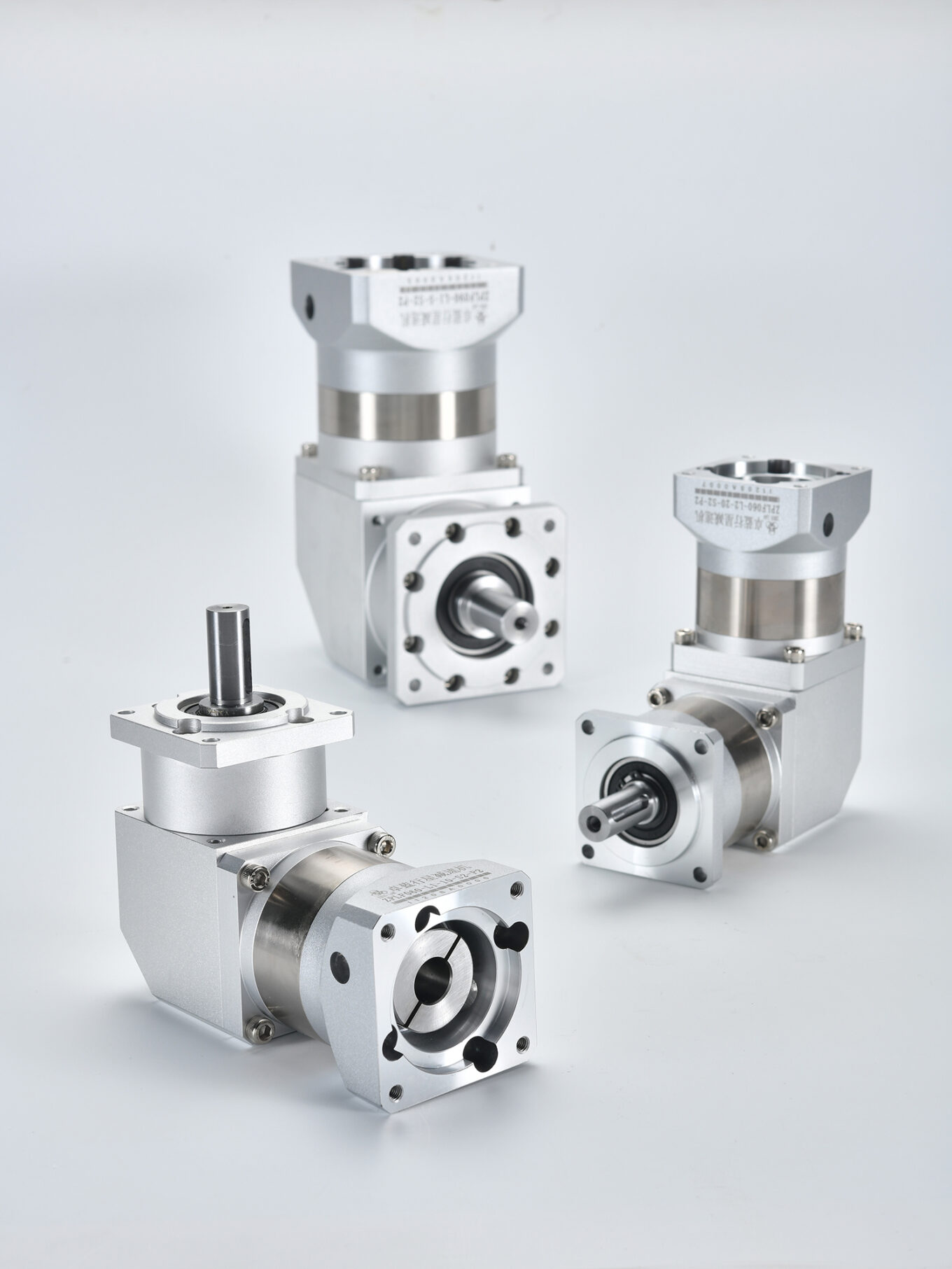

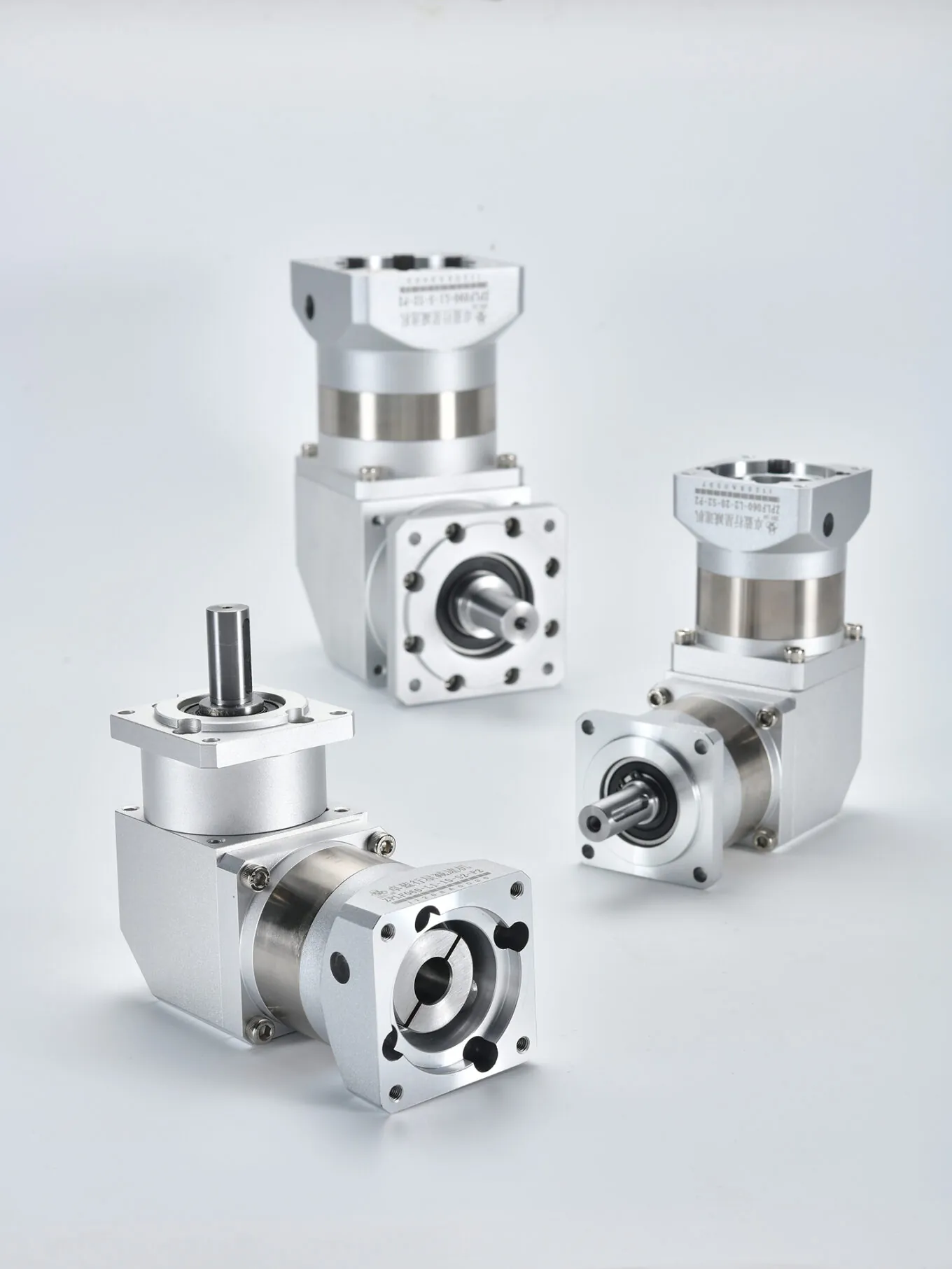

Three silver and gray right-angle planetary gearboxes on a white surface. The front gearbox has a vertical output shaft, while the two in the background have horizontal output shafts. Labels include "ZPLF060-L2-20-S2-P2" and "ZPLF090-L1-5-S2-P2".A brand advertisement for "Straight gear reducer" featuring various silver gearboxes, including inline and right-angle models, with icons for "Low noise," "High Precision," and "High torque."
