AGV stands for Automated Guided Vehicle. It is a robot that follows a set path with no driver on board. Sensors and safety guards keep each run steady and safe.
A latent AGV (also called under-ride AGV) is one type built to move under a cart or rack. It tows the load from below instead of on top. This style suits floors that already use rolling carts and racks.
AGV robots have taken over many hand-moved tasks in factories and warehouses. They raise output, cut errors, and lower the cost to move goods. Many teams pair a latent AGV with sorting, lifting, or stacking gear to speed up daily work.
Flexible Partnership Options: We welcome OEM/ODM projects, bulk orders, and distribution inquiries. Our dedicated team is ready to assist you with tailored solutions and responsive support. Free samples are available upon request to ensure your complete satisfaction.
| No. | Product Models | Images | Features |
|---|---|---|---|
| 1 | Bidirectional Lurking AGV (TL-QF-300SX-001) |
 |
Load Type: Lurking Max Towing Weight: 150Kg Dimensions (L*W*H): 1000*600*300mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Backward, 90-360° Rotation, Arc Turning Speed: ≤40m/min Battery: DC24V/35Ah Lead-acid Charging: Offline (Auto optional) |

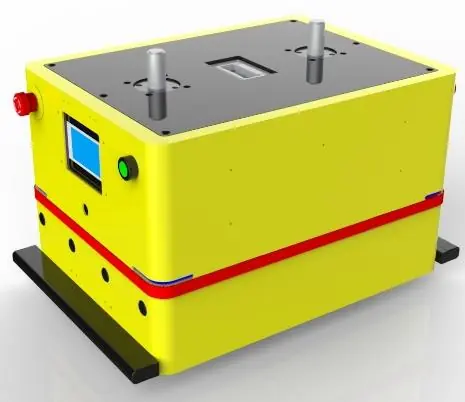

| 2 | Bidirectional Lurking AGV (TL-QF-410SX-001) |
 |
Load Type: Lurking Max Towing Weight: 150Kg Dimensions (L*W*H): 705*450*410mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Backward, 90-360° Rotation, Arc Turning Speed: ≤40m/min Battery: DC24V/40Ah Lead-acid Charging: Offline (Auto optional) |

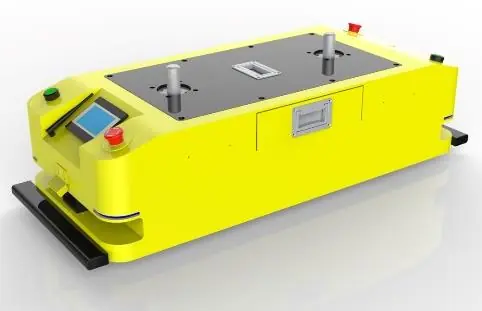

| 3 | Bidirectional Lurking AGV (TL-QF-300SX-002) |
 |
Load Type: Lurking Max Towing Weight: 200Kg Dimensions (L*W*H): 1100*450*300mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Backward, 90-360° Rotation, Arc Turning Speed: ≤40m/min Battery: DC24V/40Ah LFP Charging: Offline (Auto optional) |

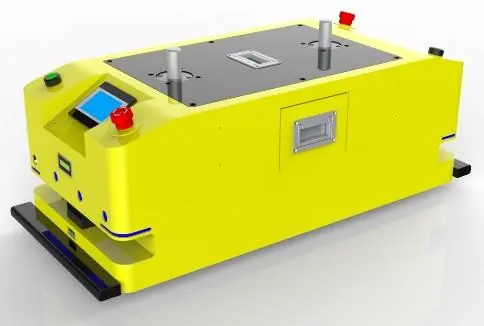

| 4 | Bidirectional Lurking AGV (TL-QF-350SX-001) |
 |
Load Type: Lurking Max Towing Weight: 200Kg Dimensions (L*W*H): 1000*420*350mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Backward, 90-360° Rotation, Arc Turning Speed: ≤40m/min Battery: DC24V/36Ah LFP Charging: Offline (Auto optional) |

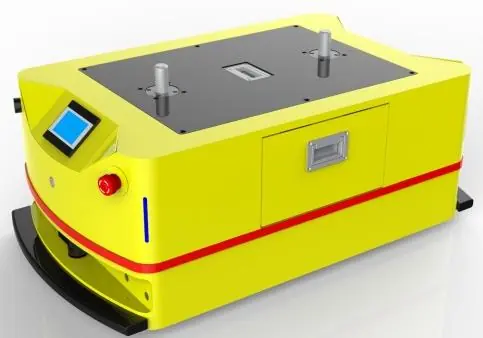

| 5 | Bidirectional Lurking AGV (TL-QF-410SX-002) |
 |
Load Type: Lurking Max Towing Weight: 300Kg Dimensions (L*W*H): 1100*600*410mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Backward, 90-360° Rotation, Arc Turning Speed: ≤40m/min Battery: DC24V/65Ah Lead-acid Charging: Offline (Auto optional) |

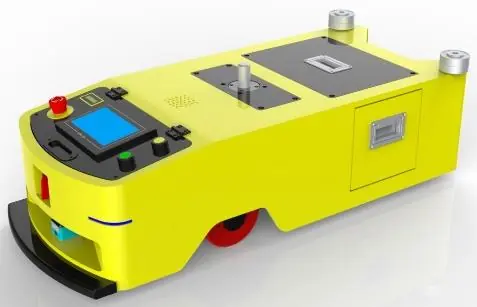

| 6 | Unidirectional Lurking AGV (TL-QF-300DX-001) |
 |
Load Type: Lurking Max Towing Weight: 300Kg Dimensions (L*W*H): 1100*450*300mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Arc Turning Speed: ≤40m/min Battery: DC24V/40Ah Lead-acid Charging: Offline (Auto optional) |

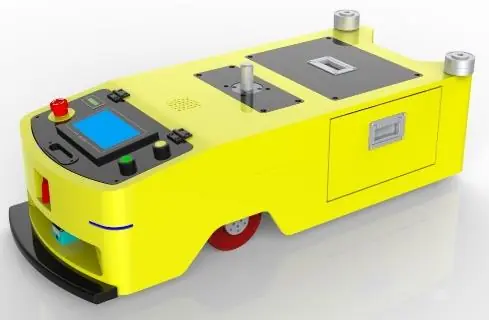

| 7 | Unidirectional Lurking AGV (TL-QF-300DX-002) |
 |
Load Type: Lurking Max Towing Weight: 500Kg Dimensions (L*W*H): 1100*450*300mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Arc Turning Speed: ≤40m/min Battery: DC24V/65Ah Lead-acid Charging: Offline (Auto optional) |

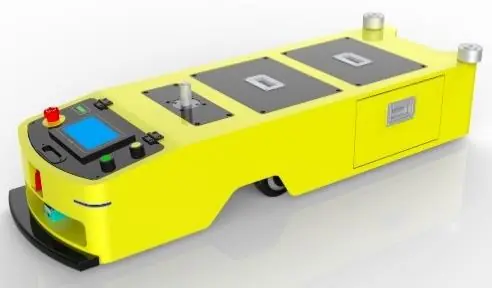

| 8 | Unidirectional Lurking AGV (TL-QF-300DX-003) |
 |
Load Type: Lurking Max Towing Weight: 500Kg Dimensions (L*W*H): 1400*450*270mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Arc Turning Speed: ≤40m/min Battery: DC24V/65Ah Lead-acid Charging: Offline (Auto optional) |

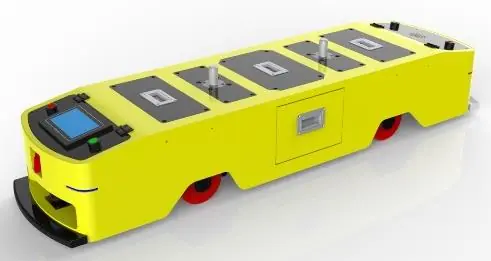

| 9 | Bidirectional Lurking AGV (TL-QF-300SX-002) |
 |
Load Type: Lurking Max Towing Weight: 1500Kg Dimensions (L*W*H): 1750*430*300mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Backward, Arc Turning Speed: ≤40m/min Battery: DC24V/60Ah LFP Charging: Offline (Auto optional) |

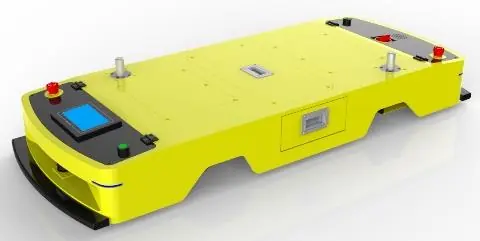

| 10 | Bidirectional Lurking AGV (TL-QF-215SX-001) |
 |
Load Type: Lurking Max Towing Weight: 1000Kg Dimensions (L*W*H): 1660*630*215mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Backward, Arc Turning Speed: ≤40m/min Battery: DC24V/60Ah LFP Charging: Offline (Auto optional) |

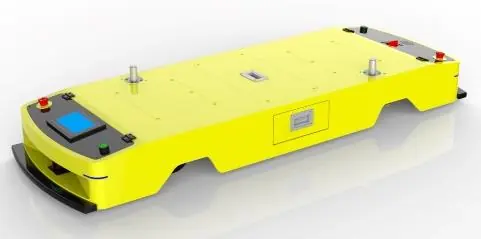

| 11 | Bidirectional Lurking AGV (TL-QF-230SX-001) |
 |
Load Type: Lurking Max Towing Weight: 1000Kg Dimensions (L*W*H): 2061.5*630*230mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Backward, Arc Turning Speed: ≤40m/min Battery: DC24V/60Ah LFP Charging: Offline (Auto optional) |

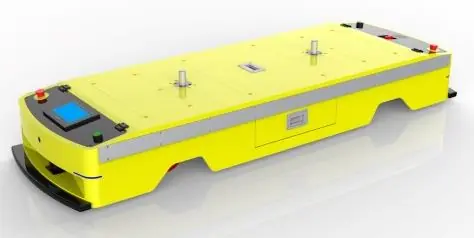

| 12 | Bidirectional Lurking AGV (TL-QF-280SX-001) |
 |
Load Type: Lurking Max Towing Weight: 1000Kg Dimensions (L*W*H): 2061.5*630*280mm (Customizable) Navigation: Magnetic Stripe Drive Method: Differential Drive Movement: Forward, Backward, Arc Turning Speed: ≤40m/min Battery: DC24V/60Ah LFP Charging: Offline (Auto optional) |

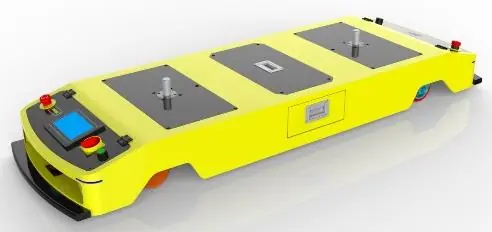

| 13 | Dual-Steering Wheel Lurking AGV (TL-QF-225DL-001) |
 |
Load Type: Lurking Max Towing Weight: 1000Kg Dimensions (L*W*H): 2050*600*225mm (Customizable) Navigation: Magnetic Stripe Drive Method: Dual-Steering Wheel Movement: Forward, Backward, 90-360° Rotation, Arc Turning, Lateral Speed: ≤40m/min Battery: DC48V/60Ah LFP Charging: Offline (Auto optional) |

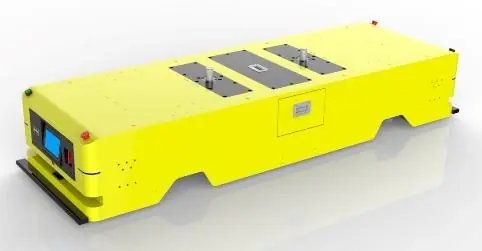

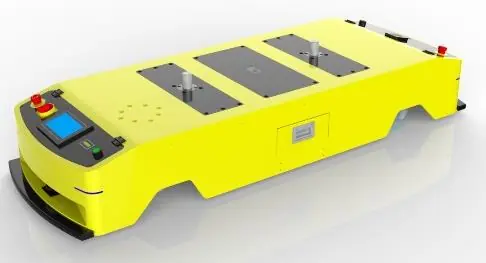

| 14 | Dual-Steering Wheel Lurking AGV (TL-QF-350DL-001) |
 |
Load Type: Lurking Max Towing Weight: 2000Kg Dimensions (L*W*H): 2050*680*350mm (Customizable) Navigation: Magnetic Stripe Drive Method: Dual-Steering Wheel Movement: Forward, Backward, 90-360° Rotation, Arc Turning, Lateral Speed: ≤40m/min Battery: DC24V/70Ah LFP Charging: Offline (Auto optional) |
| 15 | Dual-Steering Wheel Lurking AGV (TL-QF-350DL-001) |
 |
Load Type: Lurking Max Towing Weight: 5000Kg Dimensions (L*W*H): 2450*750*425mm (Customizable) Navigation: Magnetic Stripe Drive Method: Dual-Steering Wheel Movement: Forward, Backward, 90-360° Rotation, Arc Turning, Lateral Speed: ≤40m/min Battery: DC48V/105Ah LFP Charging: Offline (Auto optional) |
The line comes in two drive styles. One type moves both ways and turns a full circle. The other type moves one way, with smooth turns at each corner.
Top models add a second steer wheel for side moves. This adds a lateral movement option beyond forward and backward travel.
Load size spans small to large across the line. Light units carry 150 kg. Heavy units carry up to 5000 kg. One line can serve light carts and full rack loads.
Depending on the model, units support forward, backward, 90 to 360 degree rotation, arc turning, and lateral movement. This range lets each robot match its route to the floor plan.
Full specs for each of the fifteen models sit in the table above. Across the line, speed tops out at 40 meters per minute on every model. Drive style splits into two groups: differential drive and dual-steering wheel. Battery choice runs between DC24V and DC48V, in lead-acid or LFP form. Body size can be built to a custom fit for each cart or rack design.
No need to modify your existing equipment. Our AGVs feature a standard modular design, allowing for flexible planning based on your production line’s specific characteristics. This ensures rapid deployment and efficient, fully automated operation.
Equipped with omnidirectional automatic obstacle avoidance sensors, our AGVs maximize safety in human-machine collaborative environments. Intelligent hardware and advanced AI software algorithms guarantee stable and reliable operation.
Our AGVs utilize either lithium or lead-acid battery power supply options and come with an automatic charging function. This enables continuous 24-hour full-load operation, maximizing unmanned operations in the workshop and significantly boosting production efficiency.
Implementing our AGVs effectively solves the challenges of “difficult recruitment” and “labor shortages.” Machines replace manual labor for 24-hour operations, significantly reducing personnel costs, rapidly increasing production capacity and product quality, ultimately saving costs and enhancing efficiency for your business.
AGVs operate fully automatically with unmanned driving, requiring no human intervention. They replace manual tasks such as automatic loading, unloading, handling, and conveying of materials on the production line, achieving unmanned operations in the workshop.
By integrating AGV robots into enterprise production workshops, traditional conveyor belt production lines can be replaced. This simplifies and streamlines logistics, with AGVs seamlessly connecting upstream and downstream points for efficient material handling.
With their fully automated intelligence, AGVs replace manual electric forklifts, enabling automatic picking, retrieving, and storing of palletized materials. This achieves intelligent, unmanned material handling.
AGVs are not only applied in industrial settings but also extend to civilian sectors. They are used in restaurants and hotels for automatic meal delivery and beverage distribution. In hospitals, they perform automatic disinfection and sterilization in various areas, operating contact-free to prevent cross-infection.
Not sure which model fits your load and floor plan? Tell us your towing weight and cart size. Our team will match you to the right unit within one business day.
